High Mast Lighting Design Guide

High mast lighting is typically used for large-area illumination where conventional poles become inefficient or create too many foundations, such as interchanges, ports, logistics yards, large parking areas, airports, industrial yards and perimeter zones.

This guide is written for EPC contractors, consultants, government projects and project owners. It focuses on what actually prevents redesign, supplier mismatch and acceptance disputes:

layout first: tower locations before optics and wattage
optics and beam distribution matched to the project geometry
aiming table instead of uncontrolled field adjustment
glare and spill control, not only "more lux"
matching IES/LDT photometric files, not generic IES files
DIALux verification and acceptance-ready deliverables
foundation, lowering system, installation, maintenance, tender and BOQ review links

Need an approval-ready high mast deliverables pack?
Send drawings, site dimensions or a Google Map location. Sunlurio can support DIALux reports, matching IES/LDT files, aiming schedules, BOQ-ready configurations and tender document review.
Request Lighting Design and Engineering Support

Quick Answer

Use high mast lighting when the project area is wide, open or geometrically complex, and conventional poles would require too many foundations, create obstruction problems or still fail uniformity.

Design order for EPC projects:

Layout -> Optics -> Aiming table -> DIALux verification -> Matching IES/LDT files -> Acceptance pack

What acceptance teams usually check:

average illuminance
minimum illuminance
uniformity
glare risk
spill light at boundaries
pole locations and mounting heights
installed luminaire model and optic
aiming table consistency
matching IES/LDT files
DIALux or approved lighting calculation report
commissioning and handover records

Minimum deliverables to avoid redesign:

luminaire list
matching IES/LDT files
DIALux report
aiming table
pole layout
BOQ-ready configuration
commissioning checklist
handover document list

1) High Mast Lighting Project Review Path
2) When should you use high mast lighting?
3) High mast basics: height, luminaire count and maintenance
4) Step-by-step high mast lighting design workflow
5) Layout patterns: where to place towers
6) Glare control: the mistake that causes complaints and rejection
7) Photometrics: how to choose optics and verify with IES files
8) DIALux verification: what to check before installation
9) High Mast vs High Pole vs Flood Light
10) Quick starting calculator: how many towers do you need?
11) RFQ / Tender Input Checklist
12) Tender and BOQ Review: turning design into procurement scope
13) Common mistakes that cause redesign
FAQ
Request High Mast Lighting Engineering Support
Related High Mast Lighting Guides

1) High Mast Lighting Project Review Path

High mast lighting projects should be reviewed as a complete engineering system, not as isolated pole height, wattage or price items.

Use the following guide path to move from early layout review to tender and BOQ preparation.

Project Question	Review Guide
How far apart should high mast poles be placed?	High Mast Pole Spacing Guide
What layout pattern should be used?	High Mast Lighting Layout Patterns
How tall should the mast be?	High Mast Pole Height Guide
What lighting level should be specified?	High Mast Lighting Level Specification Guide
What wattage range should be reviewed?	High Mast Light Wattage Guide
Can an old HID system be replaced with LED?	High Mast LED Retrofit Guide
What foundation and wind-load inputs are needed?	High Mast Pole Foundation & Wind Load Guide
How should the lowering system be reviewed?	High Mast Lighting Lowering System Guide
What should be checked during installation and commissioning?	High Mast Lighting Installation & Commissioning Checklist
How should maintenance be planned?	High Mast Light Maintenance Guide
What should be included in a tender specification?	High Mast Lighting Tender Specification Guide
What should be included in the BOQ?	High Mast Lighting BOQ Checklist

This main guide explains the design workflow. The related guides support deeper review of spacing, layout, height, wattage, foundation, lowering system, commissioning, maintenance, tender documents and BOQ scope.

2) When should you use high mast lighting?

Use high mast lighting when the project area is wide, open or geometrically complex, and conventional street-light poles would create one or more of the following problems:

too many poles and foundations
poor uniformity over a large footprint
excessive obstruction to vehicles, logistics or operations
difficult maintenance if poles are distributed everywhere
unclear boundary control for large yards or interchange zones
inefficient design caused by trying to solve large-area lighting with small-area poles

Typical scenarios include:

highway interchanges
toll plazas
large junction zones
ports and container yards
logistics yards
industrial yards
large parking areas
airport apron or airport-related zones where permitted
perimeter and security boundary zones
large open municipal or utility areas

EPC rule of thumb:
If a conventional layout creates too many foundations or still cannot deliver uniformity without glare, move to high mast and design it as a system: layout + optics + aiming + verification + acceptance evidence.

3) High mast basics: height, luminaire count and maintenance

Typical system characteristics

A high mast lighting system usually includes:

tall mast or pole structure
multiple luminaires per mast
luminaire ring, headframe or bracket arrangement
defined aiming and rotation per luminaire
foundation and anchor interface
electrical cabinet, cable, SPD, grounding and controls
maintenance access plan
commissioning and handover records

Common mast heights vary by project type and site conditions. The final height should be selected through layout review, lighting calculation, glare control, structural review and local authority requirements.

Maintenance planning matters

High mast lighting should not be designed only for initial illuminance. It must also be maintainable.

Maintenance planning may involve:

fixed headframe or lowering system selection
spare driver and surge protection strategy
luminaire access method
aiming lock and inspection record
control setting record
O&M manual
spare-parts list
warranty and escalation procedure

Project tip:
Maintenance should be discussed at RFQ stage. For government, EPC and municipal projects, maintenance planning is part of long-term acceptance, not an afterthought.

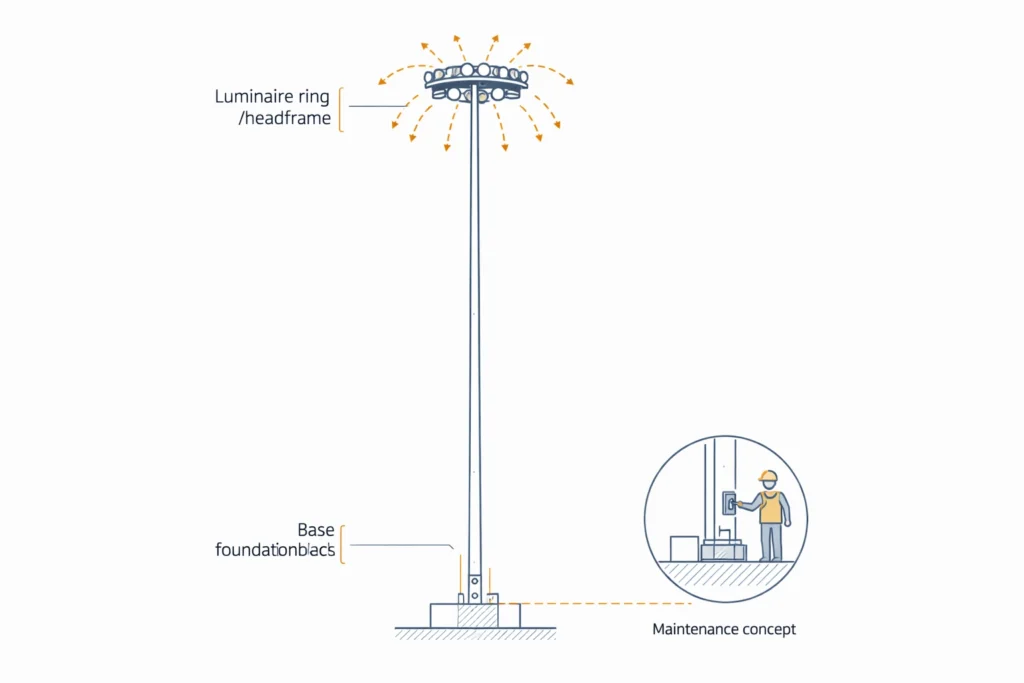

High mast lighting system diagram showing tower, luminaires and aiming directions.

Minimum inputs needed to avoid redesign

Input	Example
Site boundary / dimensions	CAD plan, Google Map polygon or project layout drawing
Target criteria	Average lux, minimum lux and uniformity target
Application area	Interchange, port, parking area, airport zone, industrial yard or perimeter
Constraints	No-pole zones, clearance, boundary spill limits, sensitive edges
Power and routing	Power points, cable routes and cabinet location if applicable
Wind and corrosion environment	Project location, exposure and authority requirement
Maintenance preference	Fixed headframe or lowering system if specified
Tender scope	Supply only, supply plus engineering support, or supply plus installation support

4) Step-by-step high mast lighting design workflow

High mast projects fail when teams jump directly to wattage.

Use this design order instead.

Step 1: Confirm what acceptance will check

Before choosing luminaires or tower quantity, confirm the acceptance criteria:

target average illuminance
target minimum illuminance
uniformity requirement
glare or obtrusive light requirement if specified
boundary spill limit if there are residential or sensitive edges
calculation plane and measurement area
referenced local standard or tender requirement
commissioning and handover document requirements

Step 2: Collect site inputs

Minimum site inputs include:

CAD/site plan or reliable dimensions
mast location restrictions
no-pole zones
road clearances and safety constraints
operating area boundaries
obstruction information
power supply information
cable route constraints
wind and corrosion environment
maintenance access requirement
employer or authority requirements

Step 3: Choose a starting mast height

A starting mast height can be estimated, but it should not be treated as final.

Height should be checked against:

project area size
required coverage distance
glare risk
boundary spill risk
luminaire output and optic
foundation and structural constraints
maintenance access method
transport and installation constraints

For a deeper review, see the High Mast Pole Height Guide.

Step 4: Layout first

Tower locations control the design result more than wattage does.

Tower placement affects:

large-scale uniformity
dark zones
aiming angles
glare risk
spill light beyond boundaries
foundation quantity
cable routing
future maintenance access

For layout-specific review, see the High Mast Lighting Layout Patterns and High Mast Pole Spacing Guide.

Step 5: Select luminaires and optics

Choose optics to solve the layout.

Do not choose wattage first and force the optics later.

Optics should be reviewed for:

beam distribution
mounting height
required throw distance
glare control
spill control
uniformity
pole spacing
aiming angle range
compatibility with the IES/LDT file

For wattage selection logic, see the High Mast Light Wattage Guide.

Step 6: Lock the aiming strategy

For each luminaire, the project should define:

tilt angle
rotation angle
aiming direction
luminaire position on the ring or bracket
reference drawing or aiming schedule
revision control if aiming changes on site

Aiming should be documented, not guessed during installation.

Step 7: Verify using DIALux and matching IES/LDT files

DIALux verification should confirm:

average illuminance
minimum illuminance
uniformity
calculation grid
tower locations
mounting heights
luminaire model list
matching IES/LDT files
aiming schedule
boundary spill condition if required
revision control

The IES/LDT file must match the offered luminaire model, optic and power setting.

Start from the High Mast Light Product Page and request a matching engineering package through Engineering Support.

5) Layout patterns: where to place towers

High mast design quality is mostly determined by tower placement. Aiming cannot fully repair a weak layout without creating glare, spill light or uneven areas.

Common layout patterns

Layout Pattern	Best Use	Main Risk
Perimeter + corners	Yards near boundaries, areas needing spill control	May require more masts for strong central uniformity
Grid / matrix	Wide open yards, large parking and logistics areas	Needs careful aiming to prevent boundary spill
Interchange-focused	Ramps, merge areas, large junctions and conflict zones	Must coordinate with road geometry and civil safety constraints
Central mast group	Certain plazas, roundabouts or compact open areas	Can create glare if aiming is aggressive
Mixed pattern	Complex sites with multiple zones	Requires clear zone-by-zone calculation and aiming schedule

Design rule:
Layout solves uniformity at the macro level. Optics and aiming refine the result. Do not reverse the order.

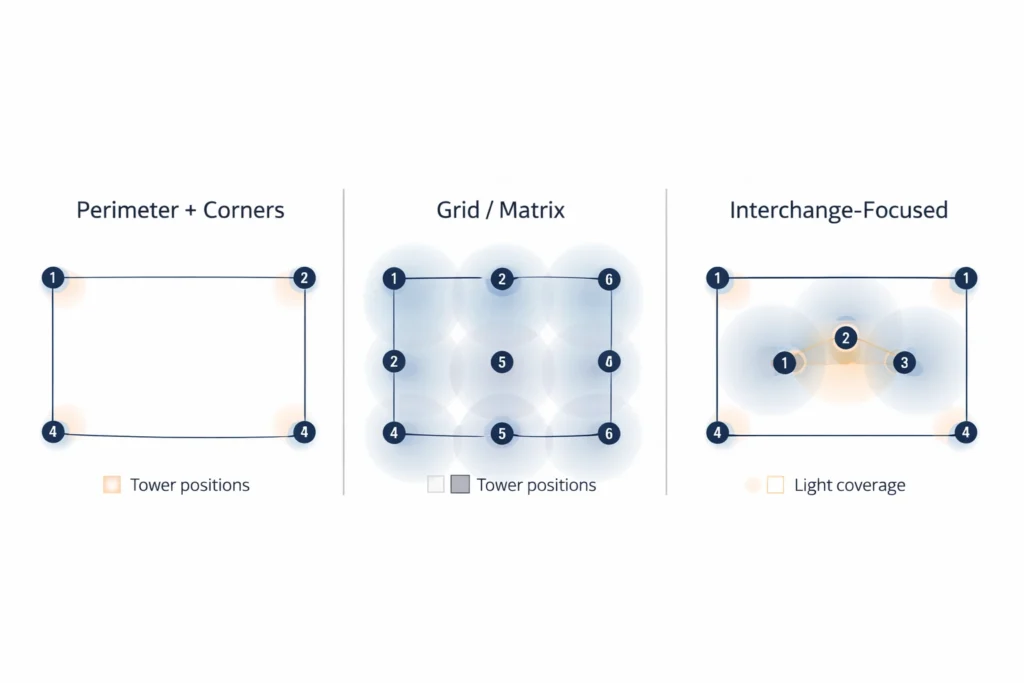

High mast lighting layout patterns: perimeter, grid and interchange-focused tower placement.

6) Glare control: the mistake that causes complaints and rejection

Many high mast proposals pass average lux but fail in real life because of glare.

Common consequences include:

driver discomfort
reduced visibility in approach zones
complaints from nearby areas
boundary spill problems
rejection during project acceptance
mismatch between DIALux report and installed aiming

Common failure mode

A weak proposal often follows this pattern:

Too few masts -> too much wattage per luminaire -> aggressive aiming -> glare and spill complaints

Practical glare-control approach

improve uniformity through layout before increasing power
use appropriate optics instead of forcing tilt angles
limit high-angle output where required
avoid over-aiming toward boundaries
document tilt and rotation in an aiming table
verify glare and spill risk in the lighting calculation where required
record any site aiming change and update the design evidence

EPC tip:
If the installer changes aiming on site, the change should be recorded and re-verified. Otherwise, the acceptance evidence may no longer match the installed condition.

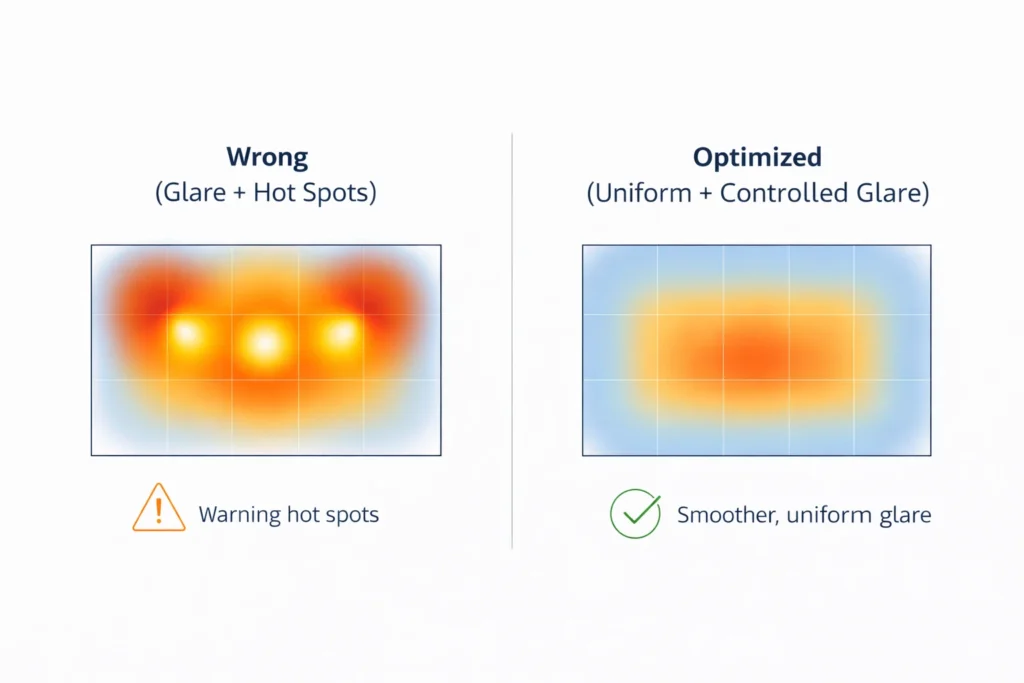

High mast lighting glare control comparison: wrong aiming vs optimized uniform layout.

7) Photometrics: how to choose optics and verify with IES files

What optics affect

For high mast lighting, the optic determines:

distance of light distribution
uniformity across large areas
boundary spill control
glare risk
number of towers needed
aiming angle requirement
whether the installed system can match the DIALux report

IES/LDT files must match the offered model

Simulation is only useful when the photometric file matches the actual product.

Require IES/LDT files for:

exact luminaire model
exact optic or lens
exact power setting if applicable
mounting condition if variations exist
proposed aiming arrangement

A generic IES file is not acceptable for EPC review. If the IES/LDT file does not match the proposed luminaire, the DIALux result is not a reliable acceptance document.

For project-ready luminaire options, start from the High Mast Light Product Page. For photometric support, see IES Photometric Files.

8) DIALux verification: what to check before installation

Workflow to verify high mast lighting using IES photometric files and a DIALux report.

A DIALux report should not be treated as a decorative attachment. For high mast lighting projects, it is part of the engineering evidence chain.

Minimum checks include:

project boundary and calculation area
calculation grid
average illuminance
minimum illuminance
uniformity
tower locations
mounting heights
luminaire quantity
luminaire model
matching IES/LDT files
aiming table
maintenance factor or project-defined assumptions
boundary spill check if required
revision number
comparison with tender criteria

DIALux review matrix

Check Item	Why It Matters	Evidence
Site boundary	Confirms the calculation area is correct	CAD, layout drawing or map boundary
Pole locations	Confirms layout feasibility	Pole layout drawing
Mounting height	Affects distribution and glare	Pole schedule
Luminaire model	Must match BOQ and submittal	Datasheet and BOQ
IES/LDT file	Must match product and optic	Photometric file
Aiming schedule	Connects simulation to installation	Tilt and rotation table
Uniformity	Prevents dark zones and acceptance failure	DIALux report
Boundary spill	Prevents complaints near sensitive edges	DIALux result or project requirement
Revision control	Prevents mismatch after site change	Revised report and change log

For simulation support, see DIALux Simulation Outputs.

9) High Mast vs High Pole vs Flood Light

These terms are often mixed in tenders. Use this distinction to avoid wrong scope, wrong pricing and acceptance disputes.

Term	Typical Meaning	Typical Use Cases	Key Risk if Mixed Up
High Mast Lighting	Multi-luminaire system on a tall mast or tower	Interchanges, yards, ports, large parking, perimeter areas	Wrong tower quantity or aiming plan causes glare and non-uniformity
High Pole Lighting	Tall pole with fewer luminaires	Medium-wide areas, parking, plazas	Maintenance may be underestimated
Flood Lighting	Floodlights aimed to cover a target zone	Sports, facades, boundaries, special zones	Spill light and glare complaints if aiming is not controlled

Practical EPC note:
If aiming angles are critical, treat the project as an engineered aiming system. The aiming table and spill boundary should be part of the acceptance evidence.

10) Quick starting calculator: how many towers do you need?

This is not a final design method. It only helps start an RFQ and avoid unrealistic proposals.

Step A: Define the area and target

Prepare:

area size or polygon boundary
target average illuminance
target minimum illuminance
target uniformity
site constraints
no-pole zones
boundary spill limits if applicable
sensitive neighboring zones if any

Step B: Choose a starting height

The starting height should be verified through simulation and structural review.

Typical starting logic:

medium open areas: review mid-range mast heights
large yards or interchanges: review taller mast options
special sites: justify height through layout, glare control, maintenance and authority requirements

Do not select the final height by rule of thumb alone.

Step C: Pick a starting layout pattern

Choose one starting pattern:

perimeter + corners for boundary control
grid for open-area uniformity
interchange-focused placement for road geometry
mixed zoning for complex sites

Step D: Verify with DIALux and matching files

The final answer must come from:

tower height
tower quantity
tower location plan
luminaire list
matching IES/LDT files
aiming table
DIALux report
design revision record

Start from a high mast luminaire configuration, then fine-tune layout and aiming using the matching IES/LDT file.

11) RFQ / Tender Input Checklist

Use this checklist to prepare project information before sending an RFQ.

RFQ Input	Why It Matters
Project location	Affects wind, corrosion, logistics and authority review
Application area	Port, interchange, parking, airport zone or yard affects layout
Site drawing or map boundary	Needed for pole layout and DIALux verification
Target lighting criteria	Defines lux, uniformity and acceptance basis
Boundary restrictions	Helps control spill and glare complaints
Pole height preference	Must be checked against design and structural feasibility
Power supply information	Affects electrical cabinet, cable and control scope
Control requirement	Timer, dimming, photocell, smart control or monitoring
Maintenance preference	Fixed headframe or lowering system
Wind or structural requirement	Needed for pole and foundation interface review
Foundation responsibility	Defines civil/supplier/EPC scope boundary
Installation scope	Clarifies whether installation support is included
Commissioning requirement	Defines testing and acceptance records
Handover document requirement	Defines as-built, O&M manual, warranty and spare list
Tender deadline	Helps prioritize engineering deliverables

RFQ / tender document items

Include or request:

target illuminance and uniformity requirements
referenced standard or employer requirement
area drawing / site geometry / boundary constraints
tower height, quantity and location plan
exact luminaire model list
matching IES/LDT photometric files
DIALux or accepted lighting calculation report
aiming table
boundary spill check if required
foundation and anchor interface inputs
lowering-system requirement if applicable
electrical, SPD, grounding and control scope
warranty and spare parts plan
commissioning and handover document requirements

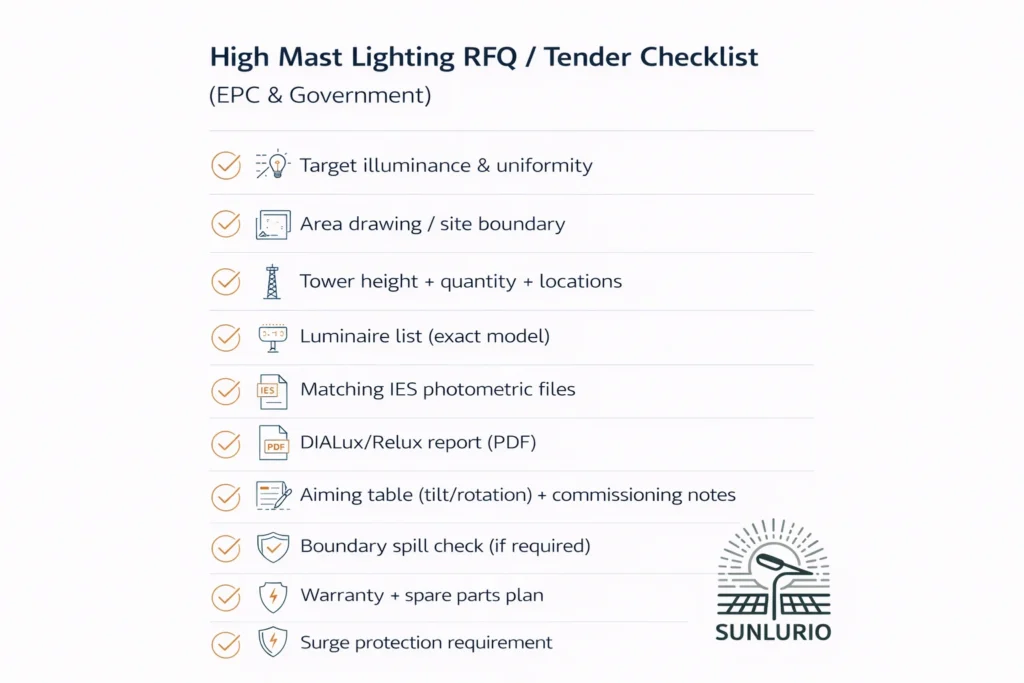

High mast lighting RFQ and tender input checklist for EPC and government projects.

12) Tender and BOQ Review: turning design into procurement scope

After tower layout, optics, aiming and DIALux verification are reviewed, the next step is to convert the design into tender-ready procurement scope.

For EPC and government projects, the tender package should not only describe mast height and luminaire wattage. It should define:

BOQ scope
drawings
datasheets
matching IES/LDT files
DIALux evidence
foundation inputs
anchor bolt and base plate interface
lowering-system requirements
electrical cabinet, SPD, grounding and control scope
installation support if required
commissioning records
handover documents
spare parts and warranty responsibilities

Tender and BOQ evidence chain

Design requirement -> BOQ item -> Supplier evidence -> Installation record -> Commissioning record -> Handover document

Tender / BOQ Area	What Should Be Defined	Related Review Page
Tender specification	Scope, system requirements, submittals and acceptance records	High Mast Lighting Tender Specification Guide
BOQ items	Pole, luminaire, foundation interface, lowering system, electrical scope and handover documents	High Mast Lighting BOQ Checklist
DIALux / lighting calculation	Layout, model, optic, IES/LDT file and aiming	DIALux Simulation Outputs
IES/LDT evidence	Matching photometric files for the proposed luminaire and optic	IES Photometric Files
Foundation interface	Pole reaction, anchor layout, base plate and wind-load inputs	High Mast Pole Foundation & Wind Load Guide
Lowering system	Winch, wire rope, ring, latch, tools, O&M manual and functional checks	High Mast Lighting Lowering System Guide
Installation and commissioning	Foundation release, installation record, electrical tests, aiming verification and handover	High Mast Lighting Installation & Commissioning Checklist

For BOQ and tender support, see Tender Documents and BOQ Support.

13) Common mistakes that cause redesign

Mistake 1: Using generic IES files

Risk:
The DIALux report does not match the actual luminaire.

Fix:
Require IES/LDT files for the exact luminaire model, optic and power setting.

Mistake 2: Starting from wattage instead of layout

Risk:
Higher wattage may improve average lux but worsen glare, spill and uniformity.

Fix:
Start with layout, then optics, then aiming, then wattage confirmation.

Mistake 3: Accepting average lux only

Risk:
The project may still fail because of poor minimum lux or uniformity.

Fix:
Review average, minimum, uniformity and boundary conditions together.

Mistake 4: Ignoring glare and spill control

Risk:
Drivers, workers or neighboring properties may complain after installation.

Fix:
Review optics, aiming, tilt and boundary spill before installation.

Mistake 5: Changing aiming on site without records

Risk:
Installed condition no longer matches the approved DIALux report.

Fix:
Use an aiming table and record any site change.

Mistake 6: Treating foundation as a standard size

Risk:
Pole, wind, soil and anchor interface may not match the project.

Fix:
Review foundation and wind-load inputs with qualified professionals. See the High Mast Pole Foundation & Wind Load Guide.

Mistake 7: Leaving the lowering system undefined

Risk:
Maintenance access, winch, wire rope, ring, tools and manuals may be excluded from supplier scope.

Fix:
Define lowering-system requirements during RFQ or tender review. See the High Mast Lighting Lowering System Guide.

Mistake 8: Missing commissioning and handover evidence

Risk:
Acceptance becomes subjective and disputes increase.

Fix:
Define commissioning records, as-built documents, O&M manuals, spare-parts list and warranty files before procurement.

FAQ

How do I choose high mast height?

Start with a practical height range based on area size, then verify the result using layout review, IES/LDT files, DIALux simulation, glare control and structural review. The right height is project-specific.

How many luminaires should be installed on each mast?

It depends on the target illuminance, uniformity, optic, mast height, pole spacing, glare limits and application area. Do not decide by luminaire quantity alone. Use DIALux verification with matching IES/LDT files.

What is the best layout pattern for a yard?

A grid pattern often supports open-area uniformity, while a perimeter or corner layout can help boundary control. Final layout must be verified against the project criteria and spill-light requirements.

Can I reduce tower quantity by using higher wattage fixtures?

Sometimes average lux can be increased by higher wattage, but the trade-off may be worse glare, poor uniformity and more spill light. EPC acceptance is rarely based on average lux only.

Why must the IES file match the offered luminaire?

Because DIALux results depend on the photometric file. If the IES/LDT file does not match the actual luminaire, optic and power setting, the report cannot reliably support approval or acceptance.

Is DIALux required for every high mast lighting project?

It depends on the tender, consultant, authority and owner requirements. For EPC, government, port, airport, yard and large-area projects, a lighting calculation package is usually recommended because it supports layout, aiming, verification and acceptance.

Should high mast foundation design be included in the lighting design?

Foundation design should be handled as a project-specific structural/civil review. The lighting supplier can provide pole drawings, base plate information, anchor interface and reaction inputs where applicable, but final foundation design depends on site and professional review.

Should the lowering system be included in the tender?

If maintenance access is required through a lowering system, the tender should define the ring, winch, wire rope, latch, tools, manual, inspection requirements and commissioning evidence. Do not assume it is automatically included unless the BOQ says so.

What should be included in a high mast lighting tender specification?

A tender specification should define the mast system, luminaires, optics, IES/LDT files, DIALux report, aiming schedule, foundation interface, lowering system, electrical scope, commissioning evidence, handover documents, warranty and spare parts.

See the High Mast Lighting Tender Specification Guide.

What should be included in a high mast lighting BOQ?

A high mast BOQ should include mast structure, base plate and anchor interface, luminaires, brackets, IES/LDT and DIALux evidence, lowering system, electrical cabinet, SPD, grounding, controls, installation scope, commissioning records and handover documents.

See the High Mast Lighting BOQ Checklist.

What documents should I request for approval?

At minimum, request:

luminaire datasheets
matching IES/LDT files
DIALux report
aiming table
pole layout
BOQ-ready configuration
foundation interface inputs
lowering-system documents if required
electrical scope documents
commissioning checklist
handover document list

Request High Mast Lighting Engineering Support

For high mast lighting projects, Sunlurio can support layout review, IES/LDT files, DIALux simulation, aiming schedule review, foundation interface inputs, lowering-system review, tender document preparation, BOQ review and commissioning document support.

Send us your:

project location
application area
layout drawing or Google Map location
pole height requirement
lighting criteria
boundary constraints
power and control requirement
wind or structural requirement
maintenance access preference
tender document scope
required handover documents

Sunlurio can support:

high mast layout review
pole spacing and height review
luminaire configuration
IES/LDT file coordination
DIALux report support
aiming schedule review
BOQ-ready configuration
foundation interface input package
lowering-system scope review
tender specification support
BOQ checklist review
commissioning and handover document planning

Request Engineering Support
Request Tender and BOQ Support
Contact Sunlurio

Related High Mast Lighting Guides

Use these pages to review the full high mast lighting project chain from layout to tender and handover.

Product and engineering support

Design and photometric review

Structural, mechanical and lifecycle review

Tender and BOQ review

Stephen Zhang

Street Lighting Project Support

Stephen Zhang supports street lighting projects for Sunlurio, with experience in lighting pole configuration, project requirements, tender documentation, and coordination for municipal and EPC applications.
