Practical field guide to High Mast Light Maintenance — real methods, real risks, and safer repair practices using lifting and climbing systems. Based on field experience from ports, airports, and highways across Africa and Asia.
What Exactly Is High Mast Light Maintenance?
If you’ve ever stood under a 30-meter lighting tower during a repair, you’ll know it’s not just about changing a bulb.
High mast light maintenance means inspecting, cleaning, and repairing tall light poles — the kind that illuminate ports, stadiums, airports, or highway interchanges.
These towers handle heavy loads, strong winds, and constant vibration. When neglected, they fail — often suddenly.
In our projects, we’ve seen two main causes of failure: poor cable condition and ignored corrosion around anchor bolts.
A small rust patch can become a structural crack in a single rainy season.
Typical maintenance work includes:
- Cleaning the glass lens and reflector
- Tightening bolts and checking for cracks
- Replacing failed LED modules or drivers
- Inspecting the lifting mechanism or climbing safety line
Most people underestimate how fast dust and humidity damage outdoor fixtures. It’s not the light that fails first — it’s usually the connection or seal.
Common Challenges You’ll Face on the Field
| Challenge | Impact | Field Observation |
|---|---|---|
| Height & access | High fall risk | Use a certified lifting or climbing system; untrained climbs are the top cause of accidents |
| Electrical wear | Sudden power loss | Inspect drivers and connectors every 6–12 months |
| Corrosion | Pole structure weakening | Coastal sites need extra galvanizing or epoxy coatings |
| Weather | Maintenance delay & danger | Never work in wind above 10 m/s — that’s our in-house limit |
In one of our highway projects in Ghana, the lifting cable snapped halfway through the descent — luckily, the safety clamp held. Since then, we always double-check the tension before starting.
These challenges explain why high mast light repair isn’t something you improvise. It’s a mix of planning, timing, and a lot of respect for gravity.
Safe Repair Methods — Lifting or Climbing?
Every team has its preference. Personally, I prefer lifting systems whenever possible. They save time and reduce risk. But climbing still has its place when retrofitting older poles without motorized systems.

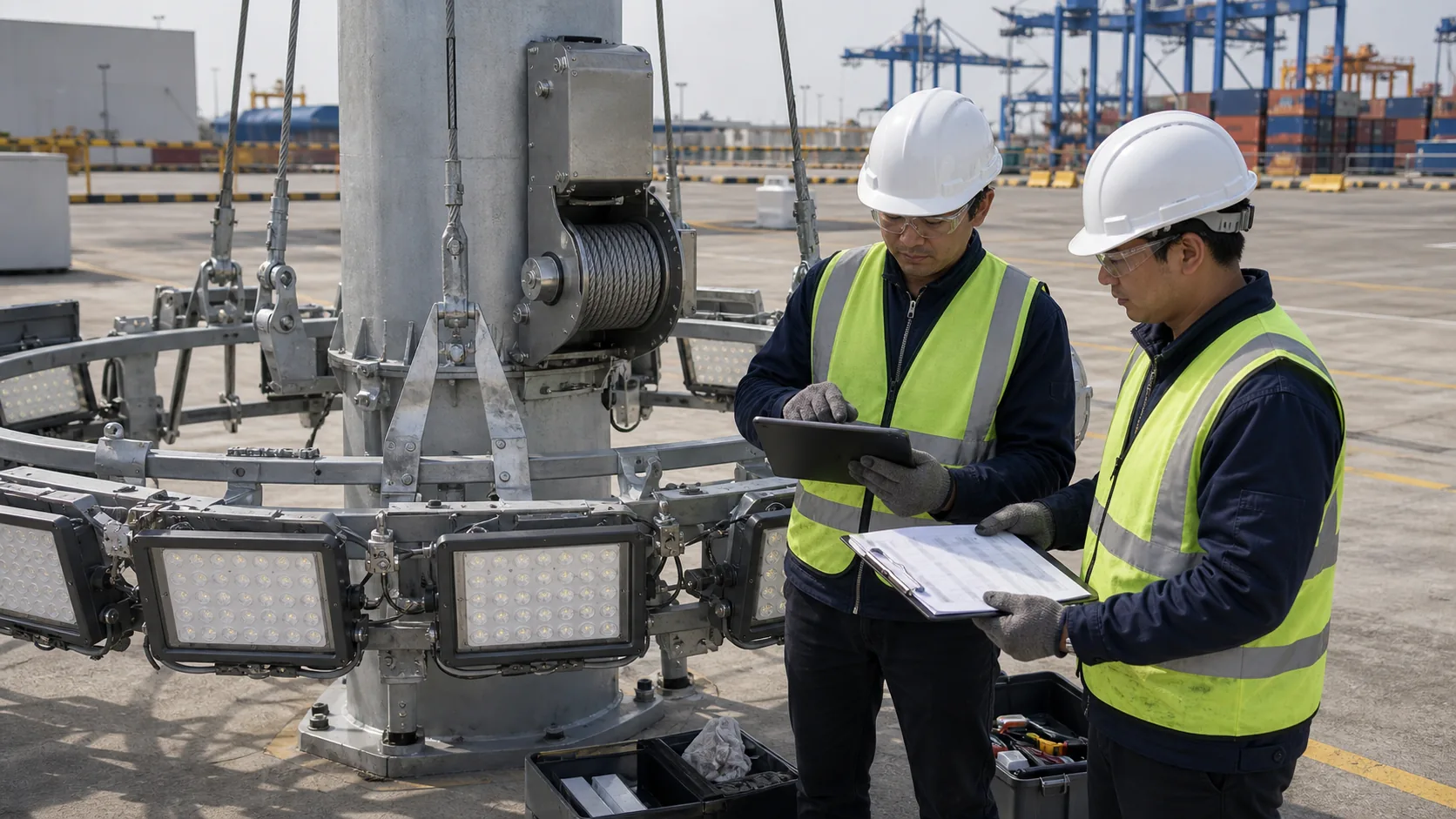

1. Lifting System Method
Here the whole lighting ring lowers to the ground using a motorized winch and stainless-steel cables.
We can do all servicing — cleaning, wiring, replacement — safely at ground level.
Advantages:
- Workers stay on the ground, so risk is low
- No scaffolding or cranes needed
- Much faster for large sites (ports, airports, stadiums)
Tips from the field:
- Always test the winch movement before releasing the lock
- Watch out for cable rust — especially in coastal humidity
- Keep the power isolated while lowering; one spark can cost you the circuit
When we worked on the Dar es Salaam port lighting retrofit, we found that using a lifting system reduced total downtime from 5 hours to just under 90 minutes per pole.
2. Climbing System Method
Some older installations don’t have built-in lifts. Here, technicians climb using safety ladders and full-body harnesses.
It’s hard work and not for everyone — one mistake can be fatal.
Why it’s still used:
- Works for retrofit poles or limited budgets
- Allows detailed structure inspection (you see every bolt, every weld)
Precautions:
- Use a double lanyard harness system
- Never climb alone; a ground watcher is essential
- Avoid working if wind exceeds 8–10 m/s or if the pole sways noticeably
Experience shows that climbing system safety depends 70% on training and 30% on discipline. Even a small shortcut, like skipping the top anchor clip, can lead to disaster.
How We Usually Handle a Full Maintenance Cycle
The steps below aren’t from a manual — they’re from actual on-site practice.
Each project differs slightly, but the logic stays the same.
Step 1 – Visual Inspection
We start by walking around the base — checking anchor bolts, pole alignment, and any sign of corrosion or vibration cracks.
If there’s visible rust near the foundation, don’t ignore it; that’s where most failures begin.
Step 2 – Power Isolation and Safety Setup
Before touching anything, isolate power completely.
Place lockout tags, and confirm that no control cabinet can energize the pole.
It sounds obvious, but you’d be surprised how many teams skip this step under time pressure.

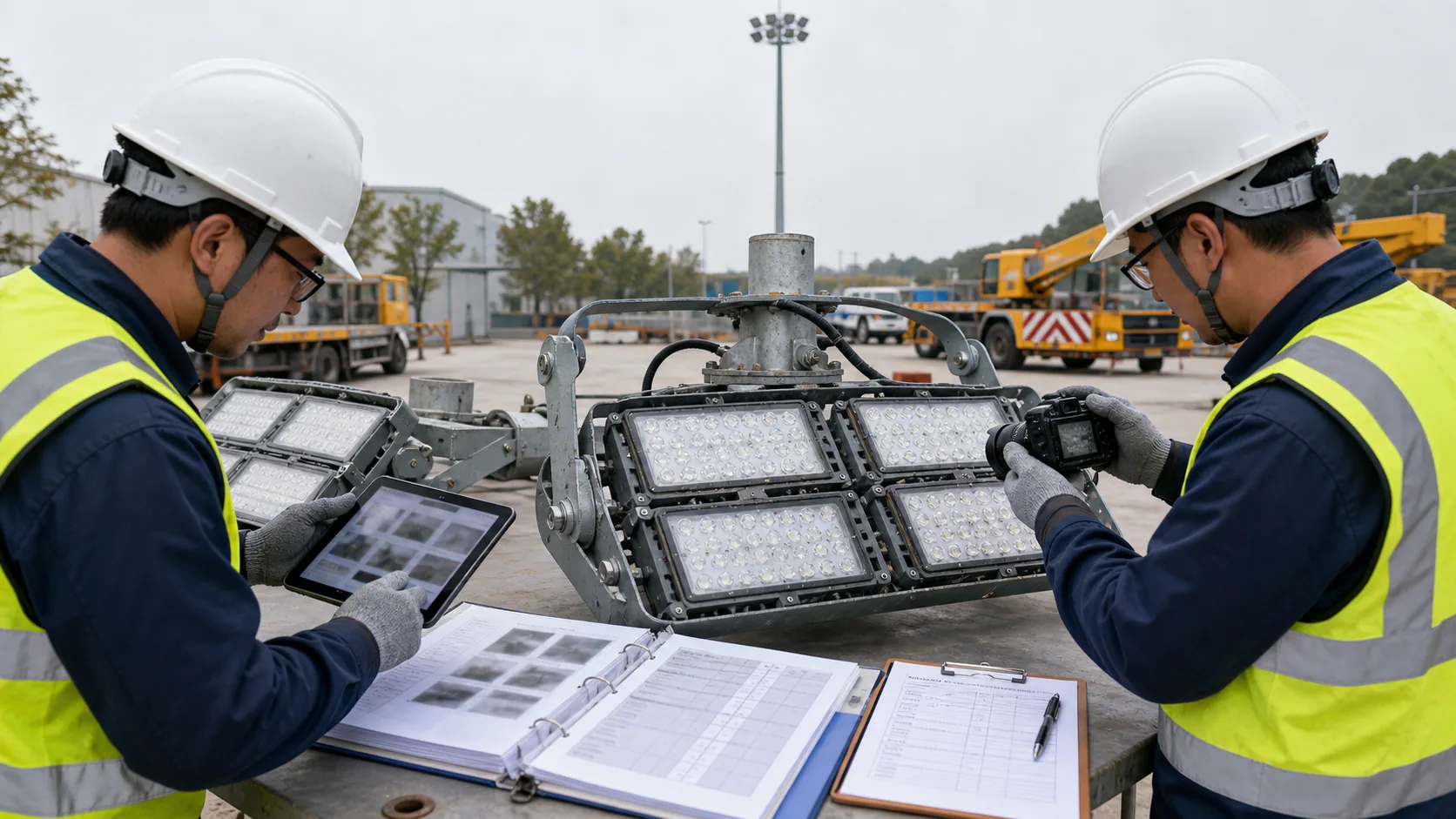

Step 3 – Cleaning and Lamp Replacement
Once safe, clean the optics with a soft cloth and neutral detergent.
Replace damaged LED modules — we use 200–230 lm/W models with waterproof connectors.
Check silicone gaskets; dust inside the lens means sealing failed somewhere.

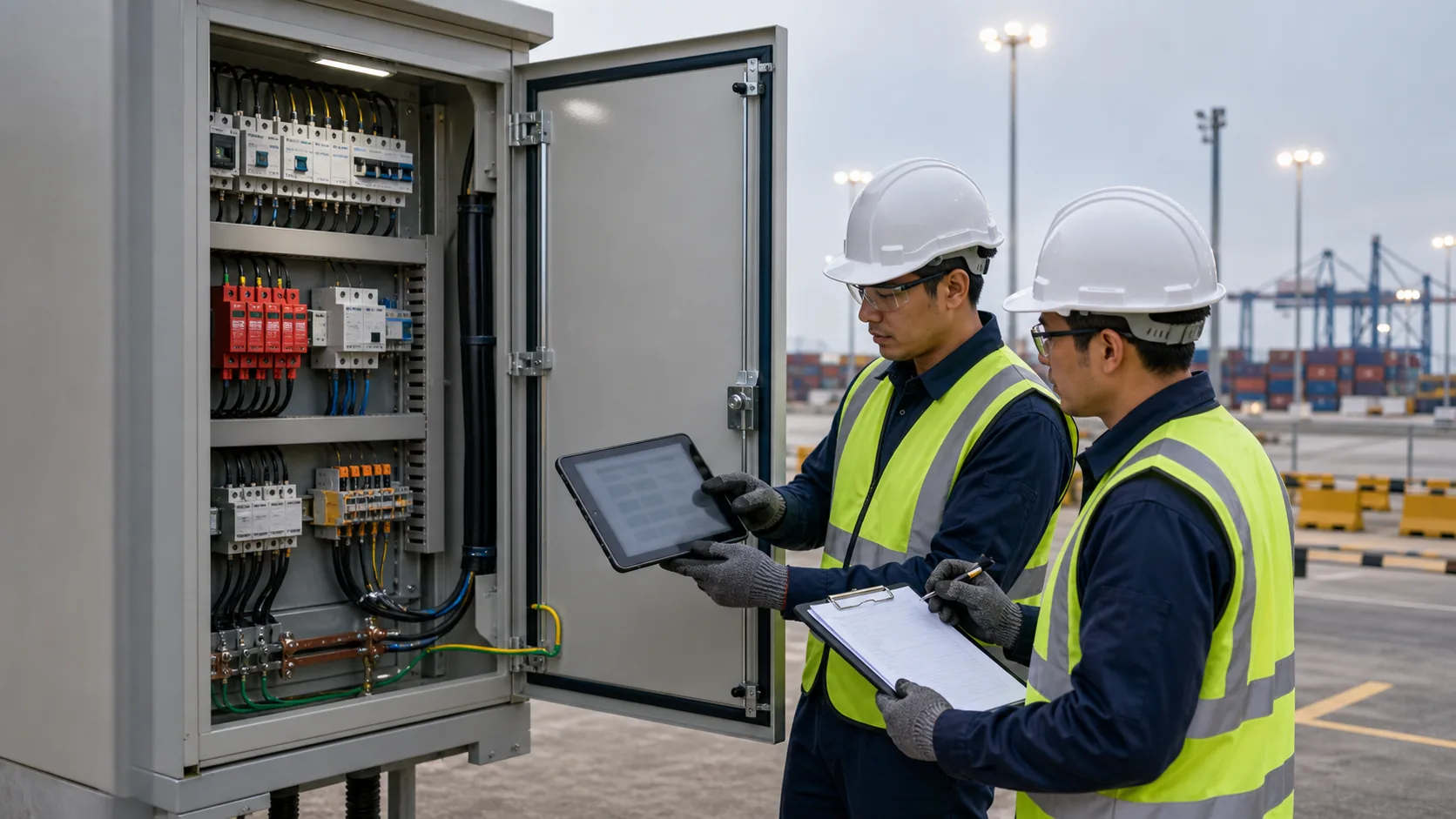

Step 4 – Electrical and Ground Testing
Use a multimeter to measure input voltage and insulation resistance.
Ground resistance below 5 Ω is ideal, though in clay soil you may accept up to 10 Ω.
Also, test photocells and control relays — many faults come from there, not the lamp itself.
Step 5 – Reassembly and Lighting Test
Once everything is back, run the lift up slowly and listen for irregular noise.

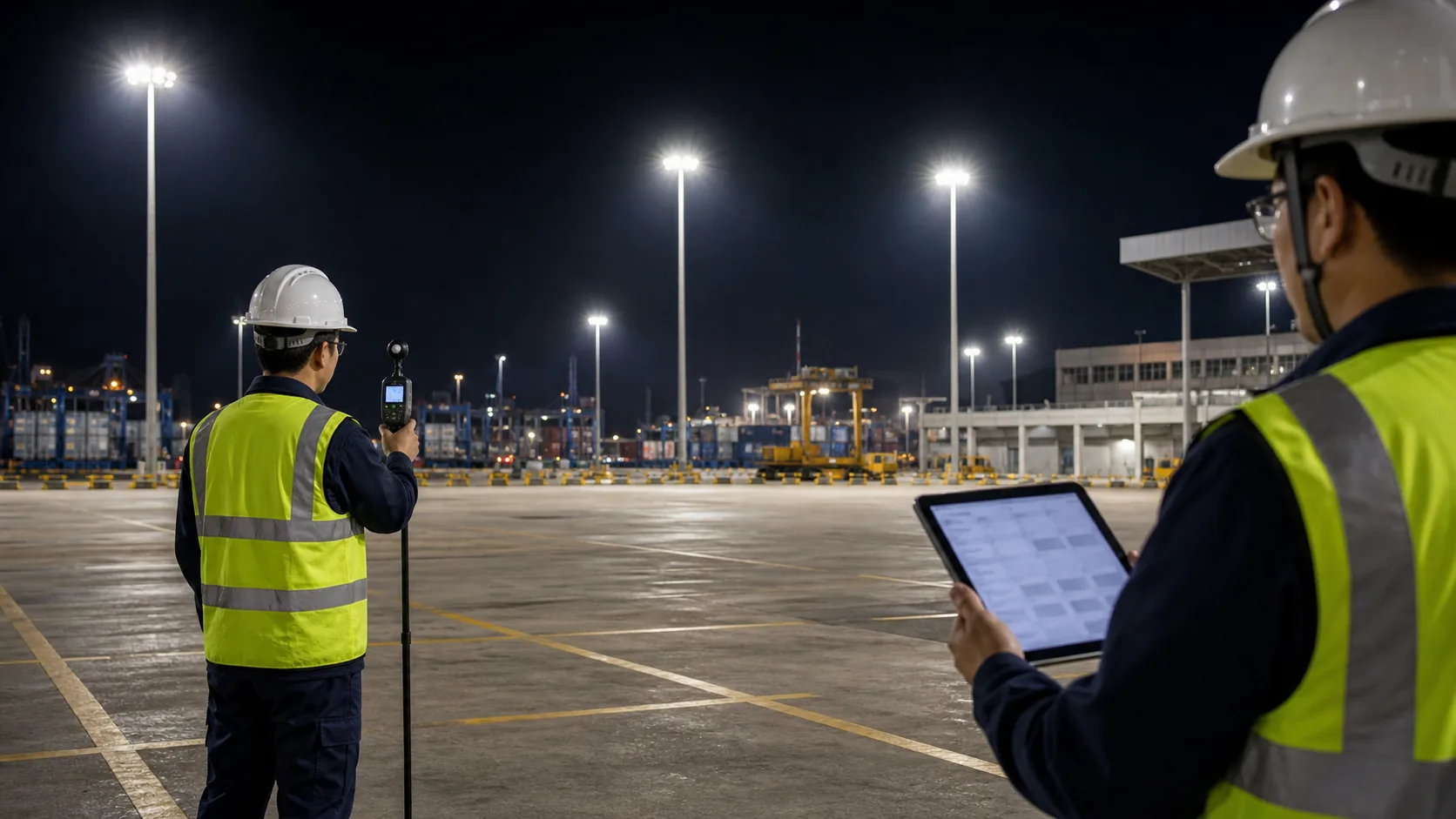

When the mast reaches full height, power on and confirm uniform brightness.
If you see flicker or delay, don’t rush — that’s usually a loose neutral or driver fault.
This step may look simple, but it often decides whether the system will last another year or another month.
Maintenance Frequency and Real Costs
How often should you maintain? Depends where you are.
Ports and coastal sites suffer fast corrosion; inland highways can go longer between checks.
| Application Site | Inspection Interval |
|---|---|
| Highway interchanges | Every 6 months |
| Container ports | Every 3 months |
| Stadiums and airports | Every 12 months |
Main cost factors:
- Manpower and safety equipment rental
- Replacement parts (drivers, optics, cables)
- Site conditions (height, corrosion, accessibility)
Switching to LED high mast lights helps more than people realize — less heat, fewer driver failures, and lower current draw.
One airport in Uganda reported a 45 % cut in maintenance cost after upgrading from 400 W metal halides to 250 W LED modules.
Safety Standards in Real Practice
We all know the rules — OSHA, IEC, ISO — but following them in the field isn’t always smooth.
- OSHA 1926 / ANSI Z359: Fall-protection gear must be checked before each use.
Reality: on hot days, harness buckles seize; keep silicone spray handy. - IEC 60598 / EN 60529: Luminaires should be IP66 sealed.
Reality: seals degrade in UV; we replace them every two years. - ISO 9001 / 14001: Documentation matters, but don’t just file it — review logs before each visit.
The hardest part is not compliance — it’s consistency.
Our team keeps a shared maintenance log; it’s messy but real, and that’s what prevents accidents.
Quick Field Checklist Before You Start
- [ ] Power fully isolated and tagged
- [ ] Weather conditions safe (wind < 8 m/s, no lightning)
- [ ] Cables inspected for corrosion or slack
- [ ] PPE checked — helmet, gloves, harness
- [ ] Backup communication tested
- [ ] Team aware of rescue plan
If even one box is unchecked, postpone the job. A day’s delay is cheaper than a broken arm.
You can turn this list into your own High Mast Light Maintenance Checklist (PDF) for the next project briefing.
Final Thoughts
Maintaining high mast lights isn’t glamorous — it’s slow, dirty, and sometimes nerve-wracking.
But when those lights come back on and you see the whole terminal lit perfectly, it’s worth it.
The toughest part isn’t the technology; it’s the discipline to inspect every nut and wire, every single time.
That’s what keeps the system — and your people — safe for years to come.
