A solar street light remote control is mainly used to turn the light on or off, select operating modes such as AUTO, Radar, Timer, and DIM, and help with setup or troubleshooting. If the remote does not work, the problem is often not the lamp itself first. In many cases, it is caused by battery issues, IR range limits, day testing conditions, or controller protection mode.
This guide explains how to set up a solar street light remote control, what the most common remote modes mean, and what to check when the remote seems to do nothing. It covers both small household solar lights and professional street-lighting systems, but for 6–12 m project poles, remote settings should be treated as part of commissioning logic, battery autonomy planning, and site consistency rather than casual button pressing.
For one or two garden lights, a remote is usually just a convenience tool. For EPC teams, contractors, and municipal projects, it is closer to a commissioning and verification tool. Wrong settings can reduce autonomy, create uneven lighting, and trigger avoidable maintenance work later.
This guide will help you:
- set up a solar street light remote step by step
- understand AUTO, Radar, Timer, and DIM modes
- fix common problems when the remote does not respond
- avoid inconsistent settings on project sites with multiple poles
If your application involves 6–12 m solar street lights, LiFePO₄ batteries, or multi-pole roadway projects, it is better to think in terms of controller profiles, commissioning checks, and system consistency, not just handheld button operation.
1. Before You Start: Garden Light or Street Light Project?
Why this matters
Setting up a small garden light is very different from commissioning a 6–12 m solar street light project. The remote may look simple, but the operating logic behind it is not always the same.
For homeowners (small garden / wall lights)
Most small lights:
- use simple battery systems
- use an IR remote similar to a TV remote
- are installed at low height and easy to test
If you misconfigure them, the usual result is shorter runtime or lower brightness, and you can normally test again without much risk.
For contractors, EPCs, and municipal teams
If you are dealing with:
- 6–12 m solar street lights
- larger LiFePO₄ battery packs
- dozens or hundreds of poles
- rainy-season autonomy requirements
then remote settings become part of your commissioning and system control logic. Wrong mode selection can reduce battery autonomy, create uneven lighting between poles, and lead to extra maintenance visits.
For these projects, the remote should be treated as a setup and verification tool, not the main long-term control method.
2. What Comes in a Remote-Controlled Solar Street Light Kit?
A typical solar street light with remote control includes the following core parts.
2.1 Solar panel
- converts sunlight into DC power for charging
- should be sized according to local solar resource and required autonomy days
- for larger projects, panel sizing should consider rainy-season performance, not just sunny-day output
2.2 LED lamp head
- provides the lighting output
- usually contains the LED module, optics, and driver
- for roadway or municipal projects, lumen efficiency matters because it affects battery and panel sizing
2.3 Battery pack
- small lights may use simple battery systems
- street lights more often use LiFePO₄ battery packs
-
battery sizing should match:
- required runtime per night
- target autonomy days
- dimming profile
- local weather pattern
2.4 Solar charge controller
- manages charging and discharging
- protects the battery from over-charge and over-discharge
- on better systems, can support programmable dimming logic and controller-side profiles
2.5 Remote control
- usually IR
- sometimes RF, 2.4G, or Bluetooth
-
used to:
- turn the light ON or OFF
- select modes such as AUTO, Radar, Timer, and DIM
- perform simple testing or field adjustments
2.6 Pole and mounting hardware
- pole height and bracket geometry should match the lighting application
- for new roadway projects, structural design and foundation details matter as much as the light itself
- for related structural reference, see light pole foundation design basics
3. Step-by-Step: How to Set Up a Solar Street Light with Remote

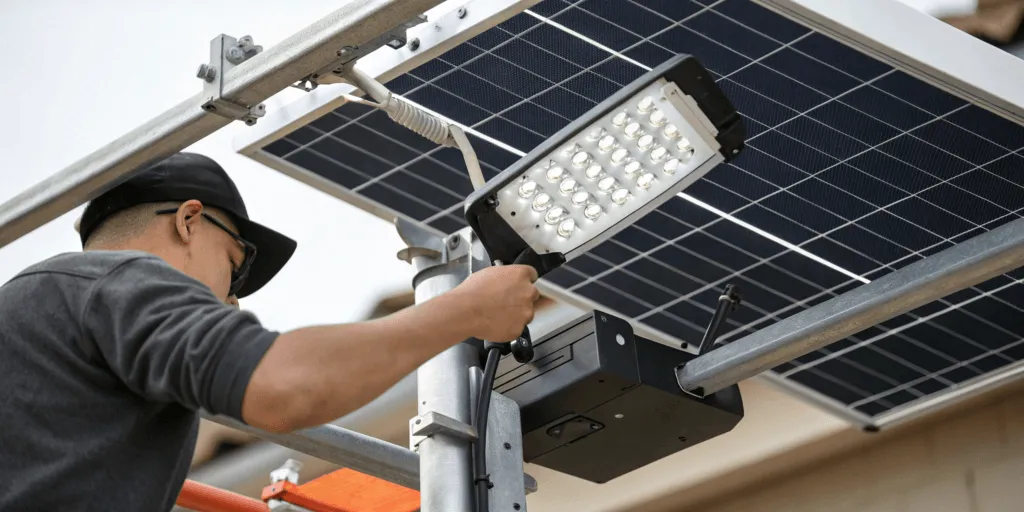

Ground-level assembly and testing are the safest way to confirm remote response before pole lifting.
[/caption]
The exact setup sequence varies by product, but the following field-friendly process works for most integrated and split solar street lights.
Step 1 – Choose the right installation location
- make sure the solar panel has full sun exposure
- avoid shadows from trees, walls, signs, or adjacent poles
-
for roads and parking lots:
- confirm that pole spacing and location match the lighting layout
Project tip
If the project already has a DIALux layout or road-lighting plan, confirm the pole positions before civil works are completed. Moving poles later is much more expensive than correcting remote settings.
Step 2 – Assemble the lamp, bracket, and panel
- mount the lamp head securely
- install the panel at the recommended tilt and orientation
- tighten bolts according to the supplier’s torque guidance
- for split systems, keep cable routing clean and protected

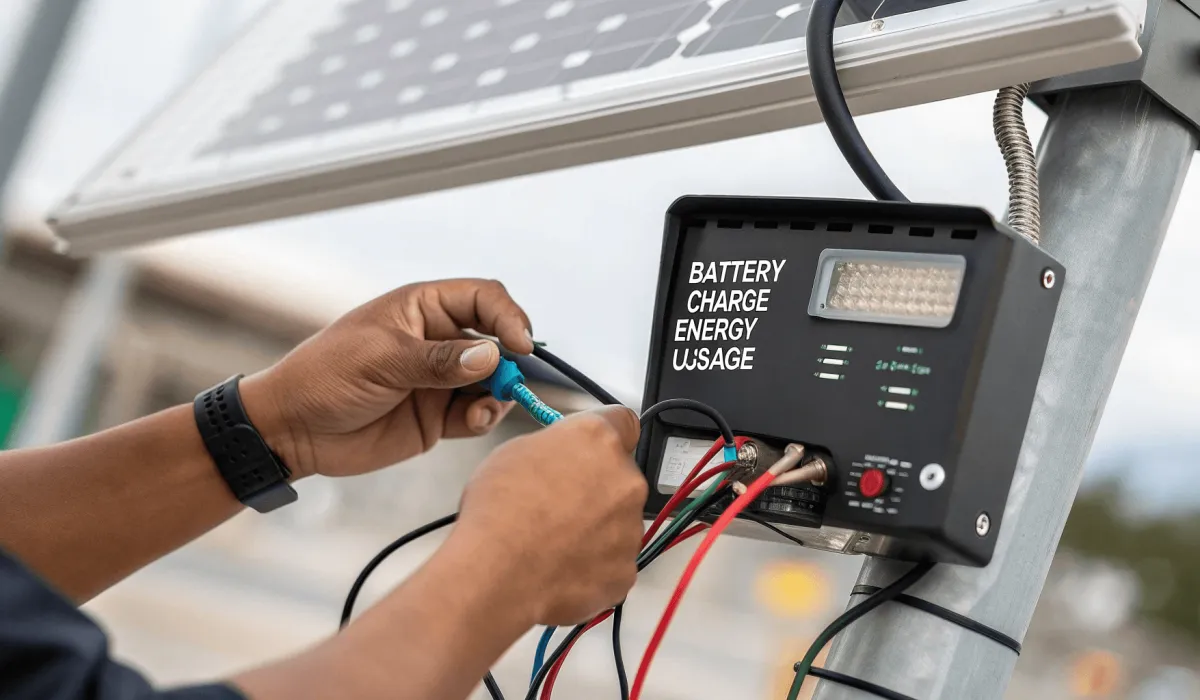

Step 3 – Connect the battery and controller correctly
For many systems, connection order matters.
- Connect the battery to the controller first
- Then connect the solar panel
- Then connect the LED load, if required by the system design
This helps the controller detect the battery voltage correctly and boot in the right operating state.
Project note
On professional split solar street lights, factory pre-wiring and pre-testing are usually better than full on-site wiring from scratch. This reduces commissioning mistakes.
Step 4 – Wake up the system
Many solar street lights ship in sleep mode or transport mode.
- press ON
- or press AUTO
- or hold the activation button for a few seconds, depending on model
Some systems only respond after the panel side is dark enough for the controller to recognize “night.”

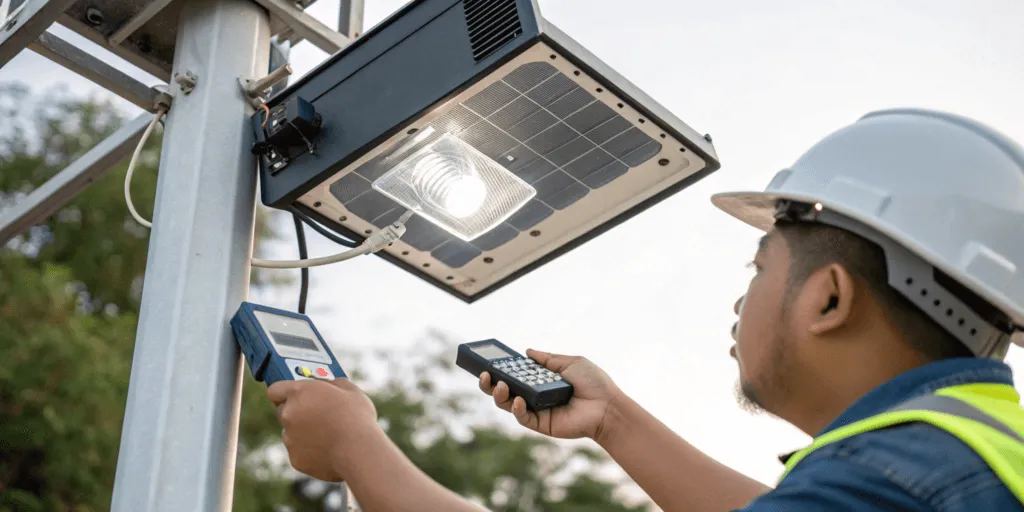

Step 5 – Test the lamp before lifting the pole
Before the pole is raised:
- cover the solar panel fully to simulate night
- press ON or AUTO
- confirm that the light turns on
- confirm that the remote responds to mode changes or brightness changes
This is one of the simplest ways to prevent avoidable crane-time rework.
Installer tip
Do not wait until the fixture is mounted at 8 or 9 meters before discovering the remote battery is dead or the controller is still in shipping mode.
Solar Street Light Remote Control Manual: Basic Button Functions
| Button / Mode | What It Usually Means | When to Use It | Project Warning |
|---|---|---|---|
| ON | Turns the light on or wakes the system | Ground testing or activation | Do not use ON testing as final project confirmation |
| OFF | Turns the light off or enters sleep mode | Storage, transport, or reset | Do not leave project lights in OFF mode after installation |
| AUTO | Dusk-to-dawn operation | Normal daily operation | Confirm whether AUTO includes a factory dimming profile |
| Radar / PIR | Motion-based brightness boost | Rural roads, parking areas, low-traffic zones | Not always suitable for busy municipal roads |
| Timer | Runs for selected hours after dusk | Temporary or special-use applications | Can reduce road lighting consistency if misused |
| DIM | Adjusts brightness level | Testing or small-site adjustment | Avoid random pole-by-pole dimming on large projects |
| Reset / Default | Returns to default mode on some models | When settings are unclear | Default may differ by supplier or project profile |
Quick Remote Control Instructions Before Pole Installation
Before lifting the pole, use this quick instruction checklist:
- Check the remote battery and polarity.
- Confirm whether the remote is IR, RF, 2.4G, or Bluetooth.
- Cover the solar panel fully to simulate night.
- Press ON or AUTO to wake the system.
- Test Radar / PIR, Timer, and DIM response if available.
- Return the lamp to the required final mode.
- Record the selected setting for each project zone.
4. What Do AUTO, Radar, Timer, and DIM Mean?
Most solar street light remotes use similar operating concepts even when the button labels differ slightly.
4.1 ON / OFF
- ON activates the light for normal operation
- OFF may place the system into deep sleep or long-storage mode
Do not use OFF as the normal nightly operating mode unless the supplier manual specifically says so.
4.2 AUTO mode
AUTO usually means dusk-to-dawn operation.
- the lamp turns on when panel voltage drops in the evening
- the lamp turns off when the panel sees sunlight in the morning
- many systems combine AUTO with a factory-set dimming curve
For most solar street lighting applications, AUTO is the normal starting mode.
4.3 Radar / PIR / Motion mode
This mode keeps the lamp at lower brightness and boosts output when motion is detected.
Typical logic:
- low background level at night
- full or higher brightness when someone passes
- returns to low level after a short delay
This mode is often useful for:
- rural roads
- walkways
- industrial perimeters
- parking areas
- lower-traffic zones
In many off-grid projects, motion-based logic can significantly improve battery autonomy.
4.4 Timer mode
Timer buttons may be marked as:
- 2H
- 3H
- 4H
- 6H
- 8H
These usually force the lamp to stay on for a defined period after dusk. Depending on the controller, it may then:
- turn off
- or drop to a lower output
Timer mode can be useful for special-use applications, but for roadway lighting it is usually less flexible than AUTO plus dimming logic.
4.5 DIM / Brightness levels
DIM buttons typically let you select:
- 25%
- 50%
- 75%
- 100%
This is useful for:
- quick testing
- site adjustment
- small-scale applications
- confirming that the driver and remote are responding
Engineering note
For project-scale lighting, it is usually better to use a predefined controller profile than to set brightness manually pole by pole. A project with 100 poles should not depend on 100 random button choices.
For larger projects, see also engineering support for solar street lighting.
5. Solar Street Light Remote Not Working? Check These First
If the remote does not respond, check battery condition, signal type, and testing conditions before assuming the lamp is defective.
If the remote seems dead, go through the following checklist before assuming there is a product defect.
5.1 Check the remote battery
- replace the coin cell or AAA battery if needed
- confirm correct polarity
- check for battery drain from long storage
This is still one of the most common reasons a remote appears not to work.
5.2 Confirm whether the remote is IR or RF
Most standard remotes are IR.
That means:
- they need line of sight
- you must point them toward the receiver area
- bright daylight can reduce response reliability
- higher mounting height makes aiming harder
RF or 2.4G remotes are usually more forgiving, but not all systems use them.
5.3 Check whether the battery is in low-voltage protection
If the system has:
- been stored too long
- not received enough charging
- or experienced several cloudy days with high output settings
the controller may block operation to protect the battery.
In that case:
- leave the panel in full sun
- reduce load if possible
- try again after sufficient charging time
5.4 Do not test only in daytime conditions
Some controllers respond differently during the day.
If you are testing at noon:
- cover the panel fully
- simulate darkness
- then try ON, AUTO, or the mode buttons again
A remote that “does nothing” in full daylight may work normally when the controller actually detects night.
5.5 Use a known working remote as a reference
If multiple identical lamps are on site:
- take a remote from a known working light
- test it on the suspect light
This helps you distinguish:
- remote failure
- lamp failure
- controller issue
- setup issue
For project sites, keeping one golden sample remote and lamp for troubleshooting is a very practical habit. In larger project sites, we also find that many “remote failures” are not remote failures at all. They usually come from daytime testing, inconsistent setup steps, or poles being commissioned with different mode settings from the start.
6. Why Handheld Remotes Are Not Enough for EPC and Municipal Projects
For one or two lights, a remote is fine. For 50, 100, or 500 poles, relying on handheld remotes alone becomes risky because the real problem is not button control. The real problem is inconsistent commissioning, uncontrolled dimming behavior, and battery autonomy loss across the project.
Professional use note
For multi-pole street-lighting projects, the remote should be treated mainly as a commissioning and verification tool, not the primary long-term control strategy.
6.1 Common problems with remote-dependent projects
Inconsistent settings
Different technicians may choose different modes for different poles.
That can lead to:
- uneven brightness across the same road
- inconsistent runtime
- difficult maintenance diagnosis
Battery abuse
If the system was sized for dimming but the field team leaves everything at 100% output, the project may perform badly in long nights or rainy periods.
Poor maintenance traceability
After months or years:
- remotes get lost
- staff changes
- no one remembers which setting was used
- troubleshooting becomes slower and less consistent
6.2 Better practice for project-scale systems
For engineering-grade projects, the better approach is usually:
- pre-program controller profiles at the factory
- standardize settings across each road section or project zone
- use the remote mainly for testing, activation, or rare local adjustment
For larger or more critical sites, remote-only logic is often not enough. In those cases, a more advanced control path may be useful, such as smart 5G solar systems.
🛑 Stop guessing with project settings
If you are not sure which dimming profile is safe for your project location, battery size, and rainy season conditions, it is better to review the autonomy logic before installation rather than after complaints start.
7. Recommended Remote Settings for Common Applications
The table below is a starting point only. Final settings should match battery sizing, solar resource, road type, and required lighting performance.
| Application | Typical Height | Suggested Mode | Notes |
|---|---|---|---|
| Garden / courtyard light | 2–3 m | AUTO + motion / medium brightness | Good balance between comfort and battery life |
| Residential street / estate roads | 4–6 m | AUTO with gradual dimming | Higher output in the evening, lower after midnight |
| Urban collector road | 6–9 m | Fixed controller profile | Better than random manual settings |
| Industrial yard / parking lot | 6–10 m | Radar / motion + higher trigger output | Helps save energy when traffic is intermittent |
| Rural feeder roads | 6–9 m | Motion-based with low standby level | Useful where constant full output is not required |
8. FAQ: Common Questions About Solar Street Light Remote Controls
Can one remote control all solar street lights?
Usually it can control multiple lights only if they are the same model or use the same code logic. For project sites, it is better to label remotes by zone, batch, or model.
What happens if I press random buttons?
You may change the operating mode without realizing it. That can disable motion mode, change brightness, force timer logic, or even turn the system off until it is reactivated properly.
How do I reset the remote settings?
On many models, pressing AUTO once or holding it for a few seconds returns the system to its default operating logic. But on project-grade systems, the default may be a custom factory profile rather than a generic setting.
Why does the remote work on the ground but not after the pole is raised?
This often happens because the remote is IR, the receiver becomes harder to target at height, or the system is being tested in unsuitable conditions. Always complete a ground-level dark test before pole lifting.
Should all poles in a project use the same mode?
In most roadway and municipal projects, yes. Poles in the same zone should usually use the same controller profile to keep brightness and runtime consistent.
Is there a universal solar street light remote control manual?
No. Many solar street light remotes use similar buttons such as ON, OFF, AUTO, Timer, Radar / PIR, and DIM, but the exact function depends on the controller and supplier profile. For project-grade street lights, always confirm the final operating mode with the supplier before installation.
What is the best default mode for solar street lights with remote control?
For most solar street lighting applications, AUTO is the safest starting mode because it allows dusk-to-dawn operation. However, larger road projects should use a confirmed controller profile rather than random manual settings, especially when battery autonomy and rainy-season performance matter.
Can I download solar light remote control instructions as a PDF?
For small lights, the button guide on this page may be enough. For project sites, it is better to use a project-specific setup checklist that records controller mode, dimming profile, battery status, and testing result before pole lifting.
9. How Sunlurio Supports Solar Street Lighting Projects
If you are setting up one or two small lights, the steps above are usually enough to understand the remote and solve basic issues.
But for EPC contractors, municipal teams, and larger off-grid roadway projects, a remote is only one small part of the full system logic.
A better project outcome usually depends on:
- correct battery and solar sizing
- appropriate controller profiles
- consistent commissioning procedures
- clear engineering documentation
- field settings that match the real project environment
For larger projects, Sunlurio can support with:
- project-oriented solar street lighting solutions
- controller profile logic
- commissioning workflow support
- engineering review based on project location and application
- product and configuration matching for different road types
- consistency checks for multi-pole settings, rainy-season autonomy, and field commissioning logic
Next step options:
-
Explore products:
👉 Browse solar street light products -
Need engineering review:
👉 Request project support or share your BOQ -
Need simulation or profile help:
👉 Request engineering support
