SL-PRO-RY Series (All-in-Two) Solar Street Light

An all-in-two solar street light series designed for practical mounting on real poles. The separated solar panel supports flexible orientation, while the compact lamp unit keeps installation consistent across bracket setups.

Project Selection

Select an RY configuration around the required lighting performance, solar resource and operating profile.

Reference luminous flux: 6,000–10,000 lm.
Whole-luminaire efficacy: approximately 200 lm/W.
All-in-Two architecture: a separate PV module allows mounting orientation to be reviewed independently of the luminaire.
Configuration-based selection: confirm the PV and LiFePO₄ options, operating schedule and project conditions together. These series-level options do not establish model or SKU pairings.

Reference figures are not a model-specific performance guarantee. Request the selected configuration and supporting photometric evidence for project review.

Product Features

All-in-two layout: compact lamp unit + separated solar panel for flexible panel orientation
Warranty: Typically 3–5 years, subject to confirmed configuration and written warranty terms.
Technical support: Remote diagnosis and technical guidance are available according to project and after-sales requirements.
Battery: LiFePO4, 3.2V 40Ah–80Ah (by model)
Solar panel: monocrystalline 6V 40W–80W (by model)
Working time: more than 12 hours typical (mode & season dependent)
Charge time: 4–6 hours typical (sun condition dependent)
Working mode: time control + always-on light
Standard bracket: 1.2 m bracket

SL-PRO-RY Series — Datasheet

Lighting Performance
Series	SL-PRO-RY (All-in-Two Solar Street Light)
Reference Luminous Flux	6,000–10,000 lm (series-level reference; selected configuration and photometric evidence to be confirmed).
Approximate Whole-Luminaire Efficacy	Approximately 200 lm/W. Reference efficacy does not establish a fixed actual LED rated power.
Photometric Evidence	Model-matched IES/LDT and test evidence: availability and applicability to be verified for the selected configuration.
Solar & Battery
Battery (LiFePO4)	3.2V 40Ah / 50Ah / 60Ah / 80Ah (by model)
Solar Panel (mono)	6V 40W / 50W / 60W / 80W (by model)
Battery Energy (Wh)	Model-specific Wh pending verification of the selected battery configuration; no SKU pairing is implied by the Ah options.
Solar Panel Dimensions	Depend on the selected PV configuration; confirm the model-matched drawing before procurement.
Control & Operation
Working Mode	Time control + always-on light
Typical Night Working Time	More than 12 hours (typical, mode & season dependent). This existing series reference is project dependent; confirm the operating profile, solar resource and energy balance.
Charge Time	4–6 hours (typical). Actual charging depends on solar conditions and the selected PV and battery configuration.
Autonomy	Project dependent. Confirm required backup duration, nightly operating schedule and seasonal solar conditions; no fixed autonomy is guaranteed.
Controller Type	Pending verification against the selected RY configuration and wiring documentation.
Mechanical & Delivery
Product Material	Aluminium profile
Lens Material	Acrylic optical lens
Product Size (by model)	Mechanical dimensions pending verification against the selected model and approved drawing.
Packing (by model)	Packing dimensions and shipment weights are provided only when matched to the selected model and packing list.
IP / IK	Pending verification against model-specific enclosure information and applicable test evidence.
Warranty	Typically 3–5 years, subject to confirmed configuration and written warranty terms.
Technical Support	Remote diagnosis and technical guidance are available according to project and after-sales requirements.

Note: Model-specific packing and panel quantity should be confirmed in the packing list before shipment.

RY All-in-Two System Architecture

SL-PRO-RY uses a separately positioned solar PV module. The LiFePO4 battery and lighting controller are housed within the luminaire assembly, alongside its LED lighting system. The functional arrangement below is schematic, not an RY mechanical or wiring drawing.

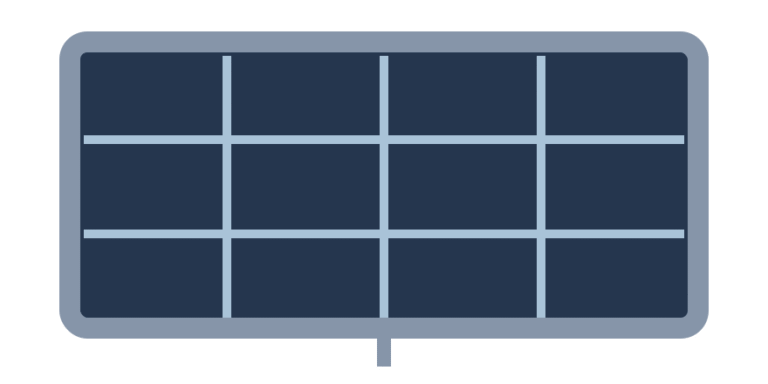

Separate Solar PV Module

Monocrystalline panel; the PV wattage, dimensions, orientation, support and cable routing are selected for the confirmed project configuration.

→

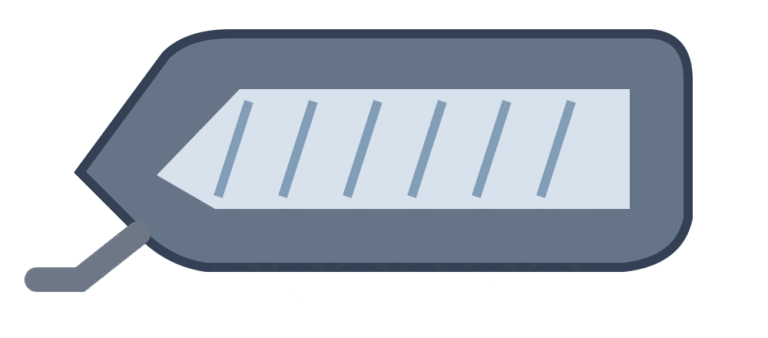

RY Luminaire Assembly

LED optics, LiFePO4 battery and controller are integrated into the luminaire assembly. Exact component placement and service access require the approved RY assembly drawing.

Mounting & connection review: Confirm the pole and bracket interface, PV mounting angle, external cable path, actual connectors, controller compatibility and required lighting schedule before ordering.

Functional illustration only; not to scale. No internal component location, mounting dimensions, cable specification or protection rating is certified by this graphic.

Installation Support

To reduce installation mistakes and onsite rework, we provide a step-by-step installation manual pack for this series (first-batch edition shown below). If you want faster fitment confirmation, send your pole diameter, mounting height, and bracket photos — our team can guide you remotely and confirm the correct setup before deployment.

Optics Options (Type II / Type III / Type IV)

Best for narrower roads and longer forward throw. Helps keep light focused along the roadway.

Type II • Narrow roads • Long throw • Controlled spill

A general-purpose distribution for most standard roads. Balanced forward throw and side coverage.

Type III • Standard roads • Balanced coverage • Common choice

Designed for wider roads, perimeters, and edge coverage. Useful when you need more lateral reach.

Type IV • Wider roads • Perimeter • Lateral reach

Not sure which optic fits your road width and mounting height? Send your height and target spacing — we’ll confirm the best option.

Packaging & Shipping

Standard export packing; pallet and loading protection optional.

Packing details vary by model — request the packing list if needed.

Photo scope: This gallery includes both product-related and general factory packaging / container-loading photographs. General handling photographs are illustrative and are not evidence of an exact RY carton, packing quantity or shipment.

Dimensions & Packing Reference

The following dimensions were recorded for RY configurations and have been confirmed as valid historical values. Exact pairing to a specific model, PV option or carton has not yet been established; do not treat the rows as matched sets.

Luminaire body size options	600 × 230 × 80 mm; 680 × 270 × 110 mm
Luminaire carton size records	550 × 267 × 85 mm; 705 × 285 × 105 mm
PV carton size records	710 × 480 × 110 mm; 710 × 655 × 110 mm; 710 × 865 × 110 mm
Model mapping, weight & loading	To be confirmed against the selected model drawing and signed packing list before procurement or freight calculation.

Important: Body, carton and PV records above are independent historical options, not verified pairings. Final dimensions, packed quantity, net/gross weight and CBM are issued only after model mapping and packing confirmation.

Proof & Due Diligence

See deployment scenarios and configuration sanity checks.

QC workflow, test capability, and traceability approach.

Documents to request for your selected RY configuration

Model-matched datasheet and configuration review.
IES/LDT files, where available, and lighting design review.
Model-matched product and mounting drawings.
Wiring information and BOQ support.

Request the applicable document set through the existing engineering enquiry route. Availability and model applicability are confirmed during review; this section is not a public download library.

RY Engineering Evidence & Configuration Checklist

Sunlurio reviews the following items against the selected RY configuration before using them for design approval, tender comparison or logistics planning:

Lighting: confirm actual model flux, luminaire efficacy, optical distribution and matched IES/LDT or test records where available.
Energy system: confirm selected PV wattage and size, 3.2 V LiFePO4 capacity and nominal energy (Wh), controller and nightly dimming profile.
Mechanical installation: check luminaire drawing, real mounting bracket and pole interface, PV orientation, wiring path and maintenance access.
Project documents: identify which datasheet, dimension drawing, wiring details and BOQ review notes apply to the selected configuration.
Quality & delivery: use verifiable product/batch inspection records and a model-matched packing list before claiming test coverage, weights, carton counts or container loading.

Document boundary: Availability, version and applicability are confirmed during engineering review. No certification, ready-to-download file or specific RY installation record is implied by this checklist.

Frequently Asked Questions

What does “all-in-two” mean? +

All-in-two uses a compact lamp unit on the pole and a separated solar panel. This makes panel orientation more flexible and reduces fitment issues on different brackets.

How long will it run at night? +

Typical runtime is more than 12 hours, but it depends on working mode, season, and charging conditions. Choose battery and panel as a matched set to avoid under-performance.

What does the warranty cover? +

Typically 3–5 years, subject to confirmed configuration and written warranty terms. Remote diagnosis and technical guidance are available according to project and after-sales requirements.

Can I request packing details and shipping documents? +

Yes. Packing varies by model, and the solar panel packing is listed separately. We can provide the packing list and required shipping documents on request.

Do you provide installation manual and video? +

Yes. We provide an installation manual pack and an installation video. Remote guidance is available if needed.
