Practical Lessons from Real Coastal Lighting Installations
Working along coastlines teaches humility. Salt air doesn’t forgive mistakes. One unsealed joint, one missed weld — and corrosion starts.
After fifteen years of street lighting work from the Kenyan coast to the Gulf, I’ve learned that hot-dip galvanized poles last longer, not because they’re perfect, but because they tolerate imperfection better than any painted system.
This article shares what we’ve seen on the ground — both the strengths and small realities of hot-dip galvanized poles in coastal projects.
Why Galvanization Matters in Marine Air
Coastal humidity can exceed 85% most nights. Add constant salt spray, UV exposure, and fine dust, and unprotected steel simply can’t cope.
Painted coatings start to chalk within two years. Zinc, however, behaves differently — it reacts, forms a stable patina, and keeps working even when scratched.
In my experience, no other surface treatment lasts as long in salt-laden air.

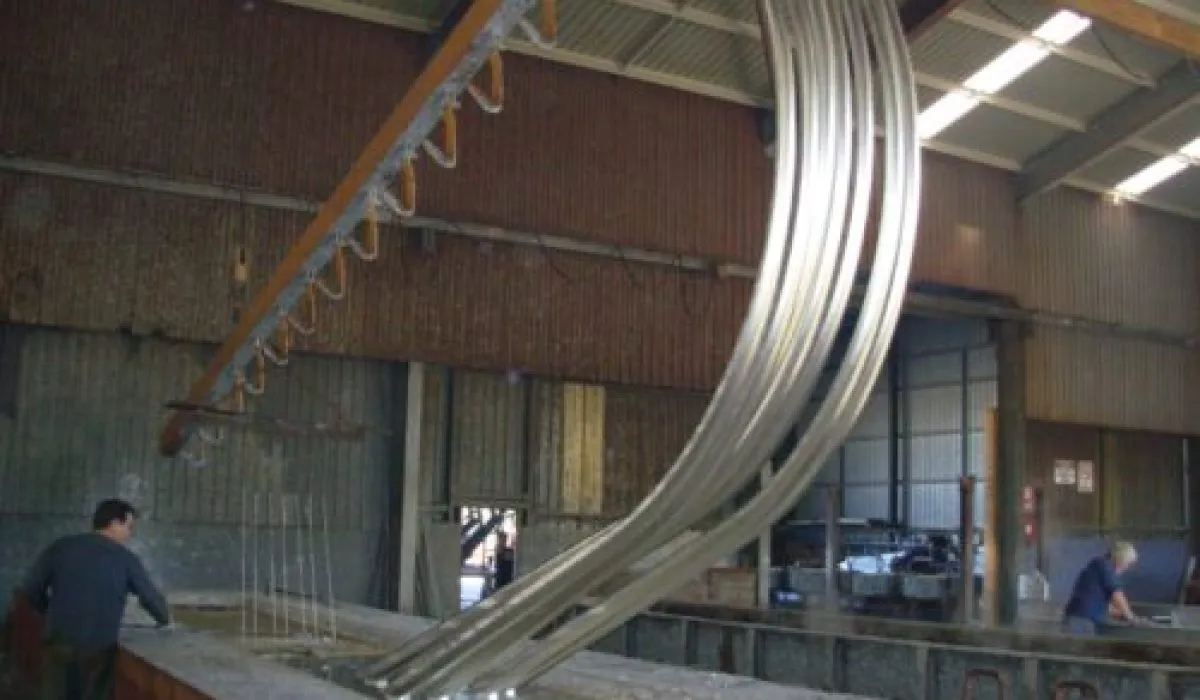

The process — immersing fabricated steel in molten zinc at about 450°C — forms several zinc-iron alloy layers. These layers are harder than steel and chemically bonded, not just attached.
That metallurgical bond is what saves maintenance teams years of repainting cycles.
Case 1 – Hamad Port Expansion Lighting Project, Qatar
Location: Hamad Port, Doha
Completion: April 2024
Scope: 156 hot-dip galvanized high-mast poles (35–45 m)
Zinc Thickness: Averaged 105 μm, ranging from 98–118 μm depending on steel thickness
Environment: C5-M Marine
Standards: ISO 1461 / ISO 12944-6
Technical Approach
Each pole was made from Q345B steel and galvanized in a 450°C bath. Coating inspection followed ISO 1461 procedures at the Doha Materials Lab.
Adhesion tests achieved Grade 0 (ISO 2409).
The measured corrosion rate from environmental sampling was roughly 1.4 μm per year, giving an expected service life of around 30 years before first maintenance.
To mitigate salt vapor, we sealed internal joints with marine silicone and added desiccant bags — not standard practice, but it helps in C5-M zones.
Lighting systems used 1200 W DALI-controlled LED floodlights with IoT monitoring.
Site Notes
Installation took 56 days under high humidity and frequent 21 m/s gusts. Ambient temperature during coating transport reached 42°C, so all poles were stacked with rubber spacers to avoid zinc abrasion.
Maintenance, however, isn’t zero. Anchor bolts exposed to tidal splash still need inspection every two years. It’s a small cost compared to repainting steel, but it’s real.
As one supervisor put it, “We used to paint poles every year. Now we just check the bolts.”
Case 2 – Mombasa Coastal Highway Street Lighting, Kenya
Location: Mombasa, Kenya
Completion: September 2024
Scope: 412 galvanized poles (10–12 m)
Zinc Thickness: ≥85 μm
Lighting: 150 W LED
Environment: C4 Marine Coastal
This project replaced mild steel poles that rusted through within eight years.
Galvanized poles showed a measured corrosion rate below 1.8 μm/year. We expect roughly 25 years before major recoating.
Foundations were poured during early-morning low tide windows. Local welders were trained for on-site inspection — a key step, because minor weld defects often start early corrosion if left uncoated.
After six months of exposure, the zinc surface dulled slightly — a natural stage of patina formation. No rework was needed.
“We stopped repainting poles every year,” said the maintenance foreman. “That’s the real saving.”
Case 3 – Da Nang Fishing Port Renewal, Vietnam
Location: Da Nang, Vietnam
Completion: January 2025
Scope: 268 galvanized poles (9 m)
Zinc Coating: 90 ±10 μm
Standard: ASTM A123/A123M
Galvanization followed full immersion with chromate passivation to delay white rust — common in high-humidity climates (avg. 78–92% RH).
Flange bases used stainless inserts to reduce galvanic reaction with concrete.
Testing results:
- Salt spray: 1000 h, no blistering
- Adhesion: Grade 0
- Corrosion rate: ~1.2 μm/year
Compared with epoxy-painted poles used in the same port five years earlier, the new galvanized poles required no surface rework after two monsoon seasons.
Night installation was the biggest challenge. Work was done between 10 PM and 4 AM, under 31°C average ambient temperature and heavy salt mist.
Six months later, the zinc sheen had softened, but inspection showed no pitting or coating lift.
Case 4 – Saadiyat Island Resort Boulevard Lighting, UAE
Location: Saadiyat Island, Abu Dhabi
Completion: November 2023
Scope: 320 decorative galvanized poles (8–10 m)
Finish: Zinc base + polyester powder topcoat (RAL 9006)
Environment: C5-I Coastal + Resort humidity
This project required both durability and aesthetics. The fluted conical poles were galvanized to 80–100 μm, then powder-coated 70 μm for color consistency.
Tests at 6-month intervals showed no corrosion, but minor fading on west-facing sections — typical in desert UV exposure.
The result combined durability with architectural appeal. Maintenance teams clean the poles twice yearly with mild detergent to prevent sand abrasion buildup.
Comparative Overview
| Project | Country | Height | Zinc Thickness | Environment | Expected Service Life | Lighting Type | Energy Saving |
|---|---|---|---|---|---|---|---|
| Hamad Port Expansion | Qatar | 35–45 m | 98–118 μm | C5-M Marine | ~30 years | 1200 W LED floodlight | 42% |
| Mombasa Highway | Kenya | 10–12 m | ≥85 μm | C4 Coastal | ~25 years | 150 W LED | 39% |
| Da Nang Fishing Port | Vietnam | 9 m | 90 ±10 μm | Marine Spray Zone | ~20 years | 120 W LED | 37% |
| Saadiyat Island Resort | UAE | 8–10 m | 80–100 μm | C5-I Coastal | ~25 years | 90 W decorative LED | 33% |
Observations and Lessons Learned
- Coating Uniformity Matters: Inner pipe coating is often overlooked; centrifuging after galvanization gave visibly better internal protection.
- Anchors Are the Weak Link: Even with perfect zinc coating, foundation bolts need separate epoxy or bitumen layers.
- Temperature Logistics: Above 40°C ambient, zinc surfaces scratch more easily during handling — we learned to use felt spacers.
- Visual Change Isn’t Decay: The grey patina that forms within months is part of the protection, not degradation.
- Inspection Frequency: We now recommend visual checks every 2–3 years in C4/C5 zones, rather than waiting for full refurbishment cycles.
Conclusion
From Qatar’s industrial ports to Vietnam’s fishing harbors and Kenya’s windy coastlines, hot-dip galvanized poles have proven more reliable than any coating system we’ve used.
They’re not maintenance-free, but they reduce both cost and worry. The zinc layer doesn’t just add life; it buys time — and time is what most coastal infrastructure lacks.
For EPC teams planning marine or resort lighting, consider galvanization as the default, not the upgrade.
Author: Yori Wang — 15 years in solar and infrastructure projects across Africa and the Middle East.
Field-tested insights from real corrosion zones.
