LED Flood Lights for Ports, Stadiums, Parking Lots, and Industrial Areas
Quick Answer: How Should an LED Flood Light Be Selected for a Project?
Flood Light Project Review Inputs
Lighting Area / Drawing
Share site drawing, area size, CAD, photos, or simple sketches for review.
Mounting Height
Pole, wall, roof, mast, or structure height affects beam angle and light distribution.
Target Lux
Average lux and minimum lux requirements should be checked before model selection.
Uniformity Requirement
Uniformity affects luminaire quantity, beam angle, aiming direction, and acceptance.
Beam Angle
Narrow, medium, wide, or asymmetric distribution should be matched to the project area.
Power Supply
AC, solar, or hybrid configuration changes wiring, backup, battery, and working-hour planning.
Protection Level
IP, IK, SPD, corrosion, temperature, and installation environment should be reviewed.
Required Documents
Datasheet, IES/LDT, DIALux/Relux, wiring notes, bracket drawing, BOQ, and packing list.
LED Flood Light Series and Project Fit
Compact LED Flood Light
Best for: small yards, facade lighting, wall-mounted area lighting, and general outdoor use.
Review: mounting method, voltage, beam angle, IP level, and quantity.
High-Power LED Flood Light
Best for: parking lots, logistics yards, industrial sites, sports courts, and public areas.
Review: height, target lux, heat dissipation, beam angle, SPD, and IES files.
Stadium / Area LED Flood Light
Best for: sports fields, high mounting, wide-area coverage, and acceptance-driven lighting.
Review: glare, uniformity, aiming, DIALux, and bracket details.

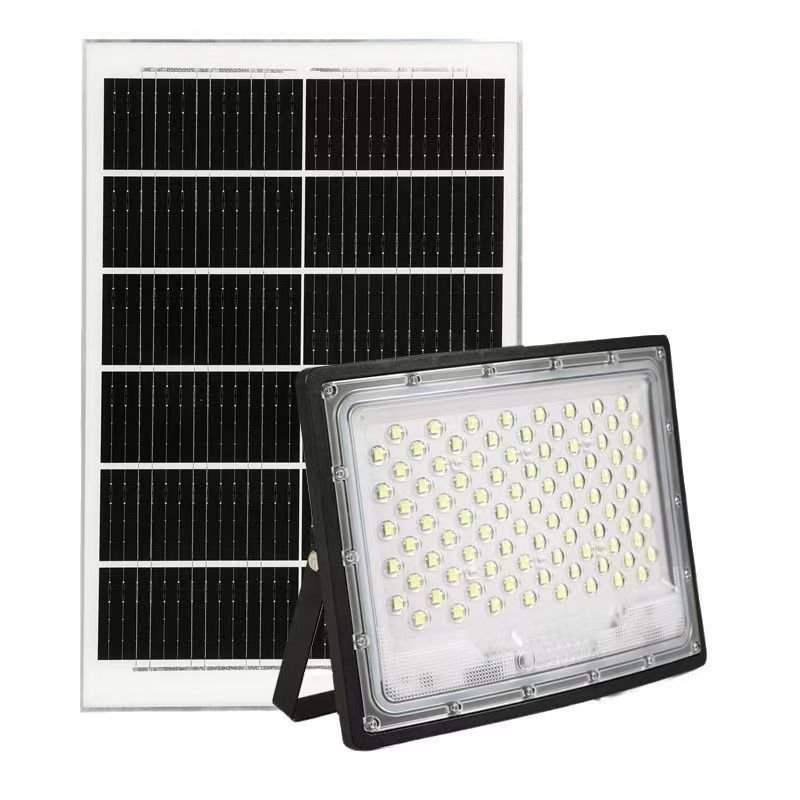

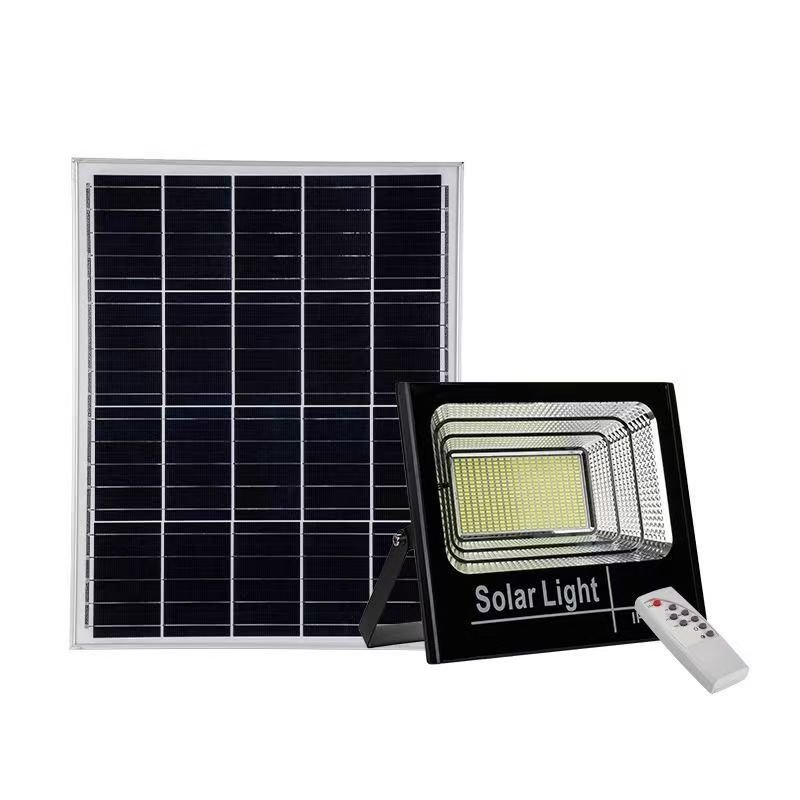

Solar LED Flood Light
Best for: remote yards, farms, temporary sites, perimeter lighting, and off-grid public areas.
Review: working hours, backup days, panel position, battery capacity, and site location.
Application Areas and Lighting Design Inputs
Port and Logistics Yard
High mounting, large area, glare control, target lux, and wide-area uniformity review.
Parking Lot
Pole height, spacing, beam angle, pedestrian safety, vehicle circulation, and lux distribution.
Sports Court / Stadium
Aiming direction, glare control, uniformity, vertical illumination, and simulation support.
Industrial Area
Dust, heat, vibration, SPD, IP/IK protection, mounting bracket, and maintenance access.
Facade / Billboard
Narrow or asymmetric beam, aiming angle, spill light, and mounting position.
Solar Off-Grid Area
Working hours, backup days, PV panel position, battery capacity, and local irradiation.
Beam Angle, Mounting Height and Target Lux Guide
3-6 m
Small yards, facade, wall lighting, temporary area lighting, and short-distance coverage.
6-10 m
Parking lots, general yards, industrial perimeter lighting, and medium-area applications.
10-16 m
Sports courts, logistics areas, ports, and applications requiring stronger uniformity review.
16 m+
High mast, stadium, port, or large-area applications that require simulation and aiming review.
| Beam / Mounting Input | Typical Review Point | Why It Matters |
|---|---|---|
| Narrow beam | Longer distance, focused aiming, higher mounting | Reduces spill light and improves reach where the target area is far from the fixture. |
| Medium beam | General area lighting and balanced coverage | Often used for yards, parking areas, and industrial areas with moderate mounting height. |
| Wide beam | Short-distance broad coverage | Useful for low mounting height, wall mounting, and broad nearby areas. |
| Asymmetric beam | Road edge, facade, directional area lighting | Helps control direction and spill light when available for the selected series. |
Solar LED Flood Light vs. AC LED Flood Light
Solar LED Flood Light
- Remote sites and off-grid areas
- Working hours and backup days must be confirmed
- Panel position, battery capacity, and local irradiation affect configuration
AC LED Flood Light
- Ports, stadiums, factories, parking lots, and stable-power projects
- Voltage, cable, cabinet, SPD, and wiring details should be reviewed
- IES/DIALux review is recommended for acceptance-driven projects
Project Workflow for LED Flood Light Configuration
Project Input Review
Area drawing, mounting height, target lux, power supply, and document needs.
Beam Angle Selection
Beam distribution is reviewed according to target area, height, distance, glare, and uniformity.
IES / DIALux Review
IES/LDT files and DIALux/Relux support help check lux level, coverage, and uniformity.
Mounting and Wiring Coordination
Bracket, pole/wall mounting, voltage, cable, cabinet, and SPD requirements are reviewed.
Document Pack
Datasheet, IES/LDT, DIALux, wiring notes, BOQ matching, and packing information.
Production and Delivery Support
Optics, driver, SPD, housing, aging test, packing, and project delivery coordination.
LED Flood Light Document Pack
- Datasheet
- IES / LDT Photometric Files
- DIALux / Relux Support
- Wiring Notes
- Mounting Bracket Drawing
- BOQ Matching Notes
- IP / IK / SPD Notes
- Packing List
Datasheet
For product comparison, technical submission, and preliminary specification review.
IES / LDT Photometric Files
For lighting simulation, beam angle review, and lux/uniformity calculation.
DIALux / Relux Support
For lighting layout, target lux, uniformity, and project acceptance review.
Wiring Notes
For AC connection, cable routing, cabinet coordination, SPD, and installation reference.
Mounting Bracket Drawing
For pole, wall, roof, or structure mounting coordination.
BOQ Matching Notes
For tender item matching, technical clarification, and project quotation support.
IP / IK / SPD Notes
For outdoor protection, impact resistance, surge protection, and industrial environment review.
Packing List
For shipment planning, project delivery, and EPC logistics coordination.
Manufacturing and Quality Support for LED Flood Light Projects
- LED Module and Optics Assembly
- Driver and SPD Matching
- Housing and Sealing Check
- Aging and Function Test
- Bracket and Mounting Parts
- Packing and Project Delivery
LED Module and Optics Assembly
LED chips, lens, reflector, optical distribution, and beam angle consistency.
Driver and SPD Matching
Driver, surge protection, voltage range, dimming interface, and electrical requirement.

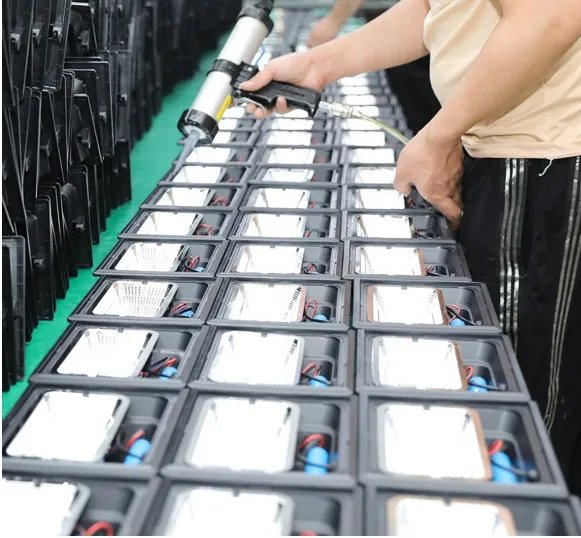

Housing and Sealing Check
Aluminum housing, heat dissipation, sealing structure, IP protection, and outdoor durability.
Aging and Function Test
Power-on testing, driver stability, light output, and batch consistency before shipment.
Bracket and Mounting Parts
Adjustable bracket, bolts, mounting accessories, and installation compatibility.
Packing and Project Delivery
Export packing, carton marking, packing list, and project batch consistency.
Related Outdoor and Area Lighting Project Experience
- Industrial Yard / Public Area Lighting
- Solar Flood Light / Off-Grid Area Lighting
- Municipal Outdoor Lighting
- Large-Area Outdoor Lighting
Industrial Yard / Public Area Lighting
Outdoor area lighting and project configuration support, including product selection, document support, and delivery coordination.
Solar Flood Light / Off-Grid Area Lighting
Remote yard, farm, or off-grid public area support with working time, backup days, datasheet, and configuration notes.
Municipal Outdoor Lighting
Public road, parking, or community outdoor area support with product configuration, document pack, and project delivery.
Large-Area Outdoor Lighting
Port, stadium, parking lot, or industrial area review where IES/DIALux support, beam angle, and quotation inputs are required.
