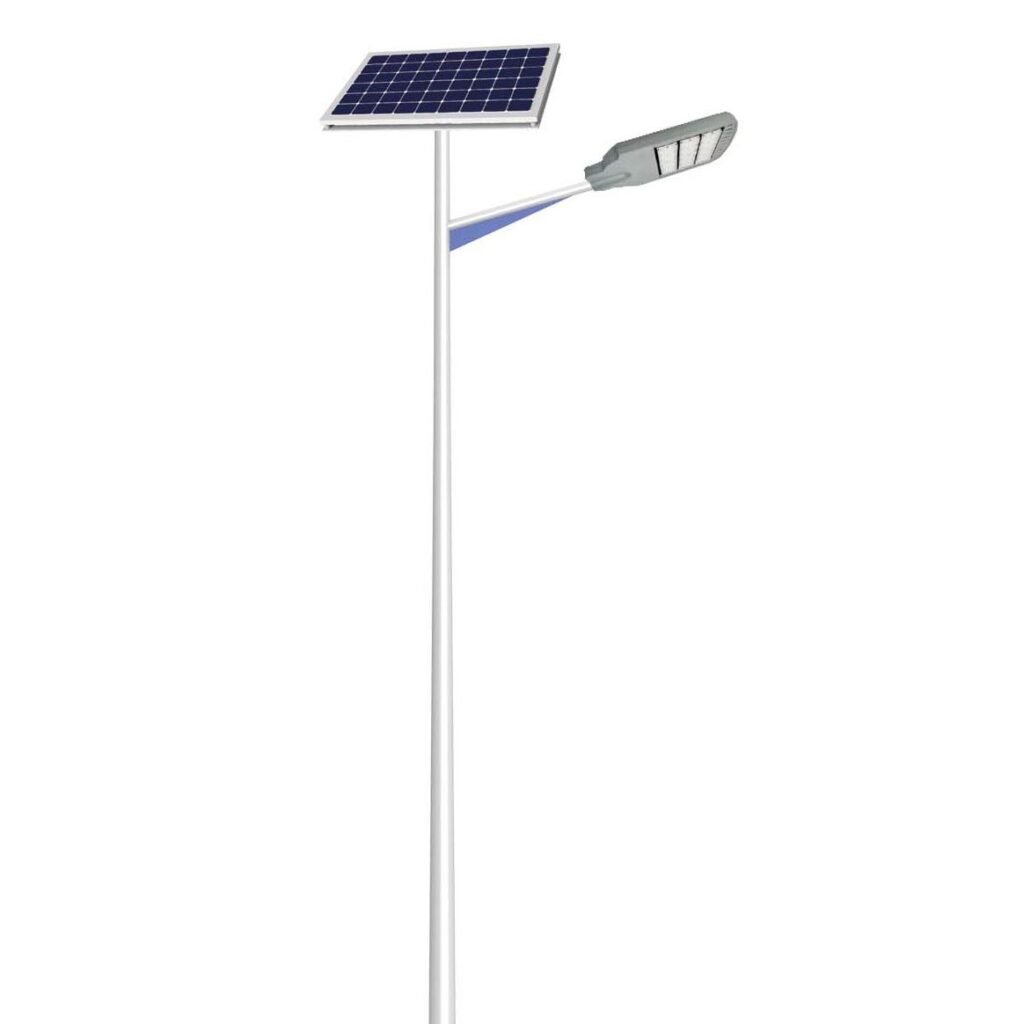

1. What Is the Sunlurio 5G Solar Street Light System?

Sunlurio is the first manufacturer in China to integrate a 5G communication module directly into the solar street light controller, enabling a true Pole-to-Cloud architecture.

The system does not require any local gateway, LoRa/Zigbee trunk, or external 4G/5G router. Each luminaire is an independent IoT terminal that connects directly to the cloud platform via the mobile operator’s 5G NB-IoT / LTE Cat1 network.

Core values: more stable, more cost-effective, easier to deploy, and less maintenance.

2. Why Is Our 5G Technology a Breakthrough?

We have achieved true deep integration – the 5G module is integrated on the same board with the solar controller, rather than added as an external communication box.

Key technological breakthroughs

• First-in-market integrated design of street light controller + 5G communication module
• Gateway-less architecture – completely removes the hardware, installation, configuration, and maintenance cost of centralized gateways
• Industrial-grade M2M 5G communication – stronger signal and higher communication stability
• Ultra-low power design – standby power consumption < 1 W
• OTA firmware upgrade – remotely update the entire street light system
• Independent cloud connection for each pole – no single point of failure

This technology makes Chinese-made solar street lights smarter, lighter, and more reliable for projects around the world.

3. What Problems Does 5G Solve for Solar Street Lighting?

Pain points of traditional solutions

Traditional Technology	Problems
LoRa / Zigbee	Requires gateways; limited distance; weak penetration; high failure rate
WiFi	Unstable outdoors; easy to disconnect; depends on local network
External 4G/5G router	Bulky, costly, and requires complex wiring
Centralized gateway system	Once a gateway is damaged, the entire project is paralyzed; high maintenance cost

Sunlurio 5G solution

• Each light is independently networked → any single light failure does not affect the others
• No local wiring or network required → installation difficulty is greatly reduced
• Carrier-grade 5G NB-IoT → better suited for remote roads, highways, and rural projects
• Real-time platform monitoring → O&M teams can reduce on-site inspection work by 50–70%

4. What Functions Can Our 5G Street Light Achieve?

● Remote control

• Turn lights on and off
• Brightness adjustment
• Smart dimming strategies
• Scheduling and timing policies

● Remote monitoring

• Battery voltage, temperature, and health status
• PV charging data
• LED operating current
• Controller operation logs
• Tilt / vibration alarms
• Location and GPS positioning

● Intelligent operation & maintenance

• Automatic fault reporting
• Abnormal current detection
• Low-battery protection strategies
• Automatic energy-saving mode during cloudy or rainy days
• OTA firmware upgrades

5. Why Do EPC Contractors Prefer Sunlurio 5G Systems?

Because 5G is integrated directly inside the lamp, engineering becomes faster, more economical, and more stable.

Cost and risk reduction

• Up to 70% saving on commissioning and O&M costs
• No gateway procurement required
• No gateway installation, cabling, or power supply required
• No gateway maintenance, upgrades, or on-site protection required
• Project acceptance is simpler: once the light is installed and on, it can go online

Lower rework risk

Installation errors such as reverse wiring, wrong tilt angle, or incorrect component parameters are reported automatically by the system, allowing engineers to handle issues remotely in real time.

No “whole project paralysis” risk

With traditional architectures, if a gateway is stolen, damaged by rain, or accidentally destroyed during construction, the entire project drops offline. Sunlurio’s 5G architecture avoids all of these scenarios by using independent connectivity per pole.

6. Architecture: How Does the Sunlurio 5G System Work?

Solar Street Light → Embedded 5G Controller → 5G NB-IoT Network → Sunlurio Cloud → User Portal / App

Core technology modules

• Sunlurio smart MPPT charge controller
• Built-in 5G NB-IoT / LTE Cat1 communication module (industrial grade)
• AIS / GPS positioning module (optional)
• Built-in IoT antenna
• Cloud platform with API interface
• End-to-end encrypted communication

This architecture reduces hardware points by about 40% and cabling points by about 90%.

7. Application Scenarios

● Remote highway / national road projects

No gateway and no local network are required – the system goes online directly.

● Rural roads & dispersed light pole projects

When gateway coverage is difficult, independent 5G communication provides a major advantage.

● Large-scale government demonstration projects

Suitable where long-term O&M data support is required.

● Smart city projects

Can be extended to cameras, environmental sensors, and additional IoT functions on the same pole.

8. What Makes Sunlurio the First Manufacturer in China?

Our industry-leading advantages include:

• First to realize a deep integration design of “controller + 5G module”
• First to apply 5G technology in batch production of solar street light systems
• First to achieve a completely gateway-free 5G smart street light architecture

We are not a plug-in solution, not an external router, and not a 4G product renamed as 5G. We are true embedded 5G Solar Street Light Technology.

9. Technical Specifications (Example)

Item	Parameter
Communication mode	5G NB-IoT / LTE Cat1
Average power consumption	< 1 W
Antenna	Built-in high-gain IoT antenna
Platform	Sunlurio Cloud (Web + App)
Encryption	Carrier-grade security encryption
OTA	Supports remote upgrade of controller firmware

Actual parameters can be fine-tuned according to specific project requirements.

10. Summary: Why Choose Sunlurio 5G?

• China’s first manufacturer with built-in 5G solar street light technology
• No gateway → lower total system cost
• No additional communication wiring → simplified construction
• No single point of failure → higher reliability
• Remote management → less manpower required
• Carrier-grade stability → especially suitable for overseas projects
• Full lifecycle monitoring → easier project acceptance and after-sales service

Sunlurio’s 5G technology enables a true generational upgrade of traditional solar street lights, turning them into manageable, traceable, and predictable infrastructure assets.
